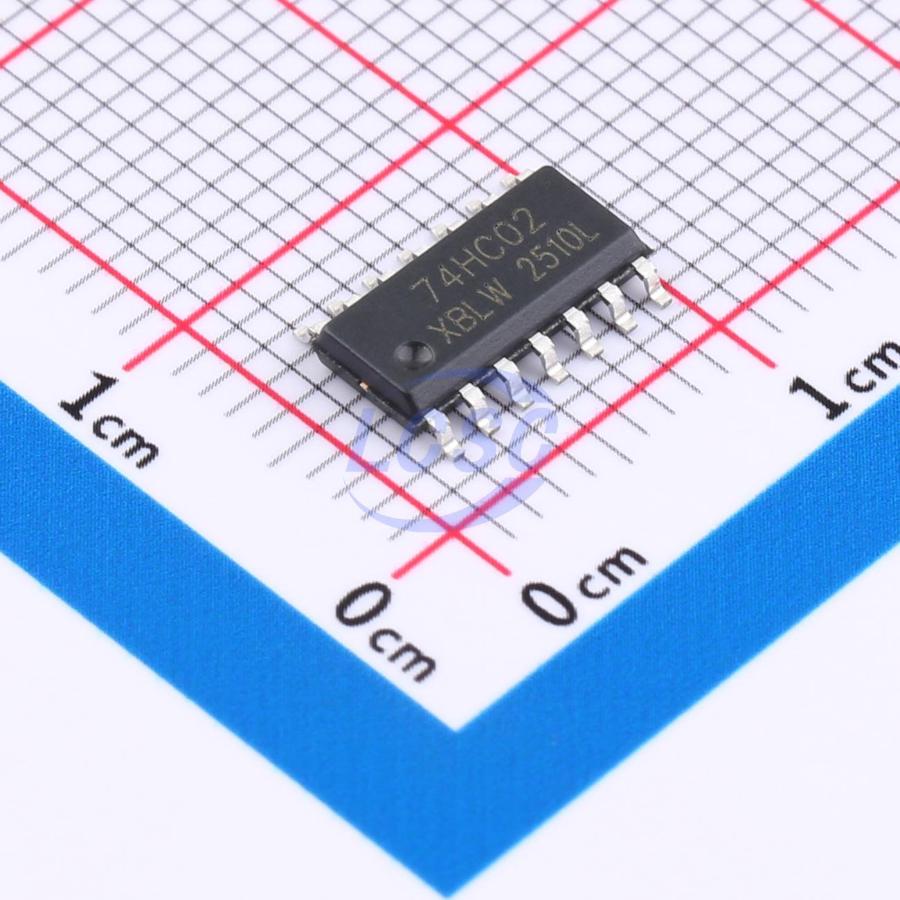

SN74HC02DTR(XBLW)
2V~6V 7ns@5V,15pF 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad NOR gate chip, 4-input 1-output, for various digital circuits
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC02DTR(XBLW)
- Store part #
- C49242132
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C49242132
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.38 | ₹66.90 |
| 50+ | ₹10.64 | ₹532.00 |
| 150+ | ₹9.27 | ₹1,390.50 |
| 500+ | ₹8.24 | ₹4,120.00 |
| 2,500+ | ₹7.42 | ₹18,550.00 |
| 5,000+ | ₹7.01 | ₹35,050.00 |
5 × ₹13.38
₹66.90
excl. GST
₹78.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC02DTR(XBLW)
₹66.90 for 5 + GST
Specifications
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 7ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The SN74HC02 is a quad 2- input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Wide operating voltage range: 2 V to 6 V
- Specified from -40℃ to +125℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
