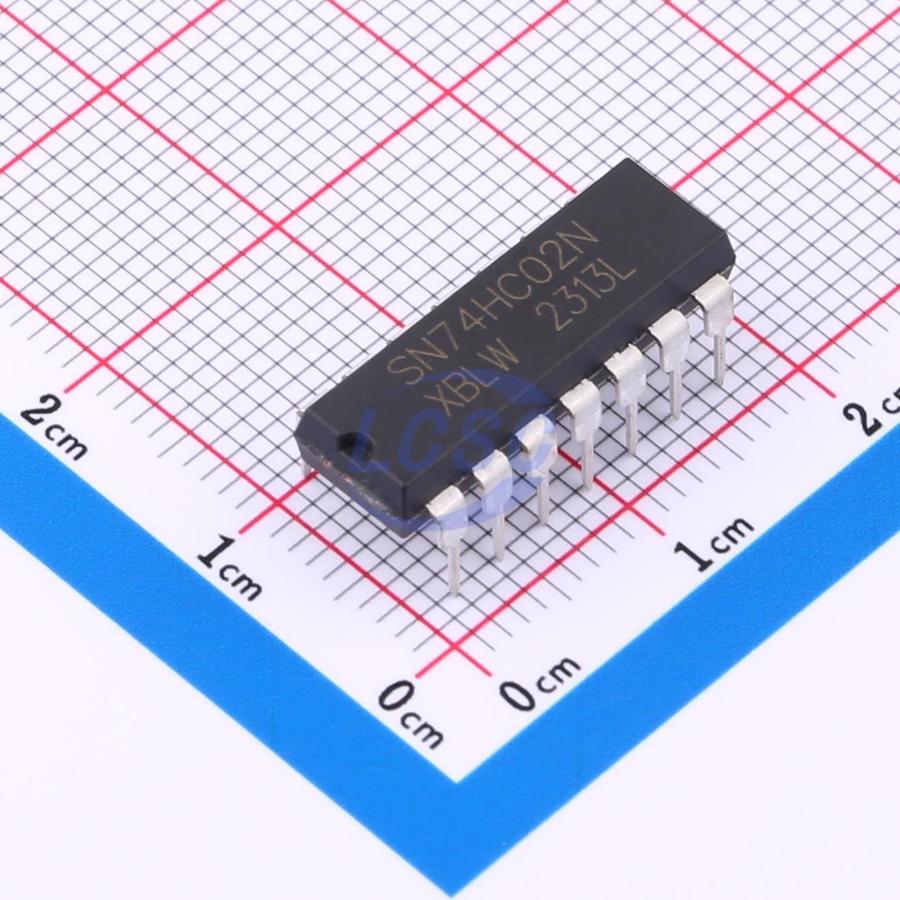

SN74HC02N(XBLW)
2uA 2V~6V 7ns DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input Nor Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC02N(XBLW)
- Store part #
- C18723496
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,105 in stock
#C18723496
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.14 | ₹90.70 |
| 50+ | ₹14.30 | ₹715.00 |
| 150+ | ₹12.38 | ₹1,857.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 2,000+ | ₹9.79 | ₹19,580.00 |
| 5,000+ | ₹9.21 | ₹46,050.00 |
5 × ₹18.14
₹90.70
excl. GST
₹107.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC02N(XBLW)
₹90.70 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74HC
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 4.5V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 4;2
- Propagation Delay
- 7ns
- Output Logic Level - Low
- 100mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.631 g
Overview
The SN74HC02 is a quad 2- input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Wide operating voltage range: 2 V to 6 V
- Specified from -40℃ to +125℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS02N(XBLW)#C42395506XBLW · DIP-14 | XBLW | DIP-14 | 490 | ₹30.10 · 490 in stock | View |
