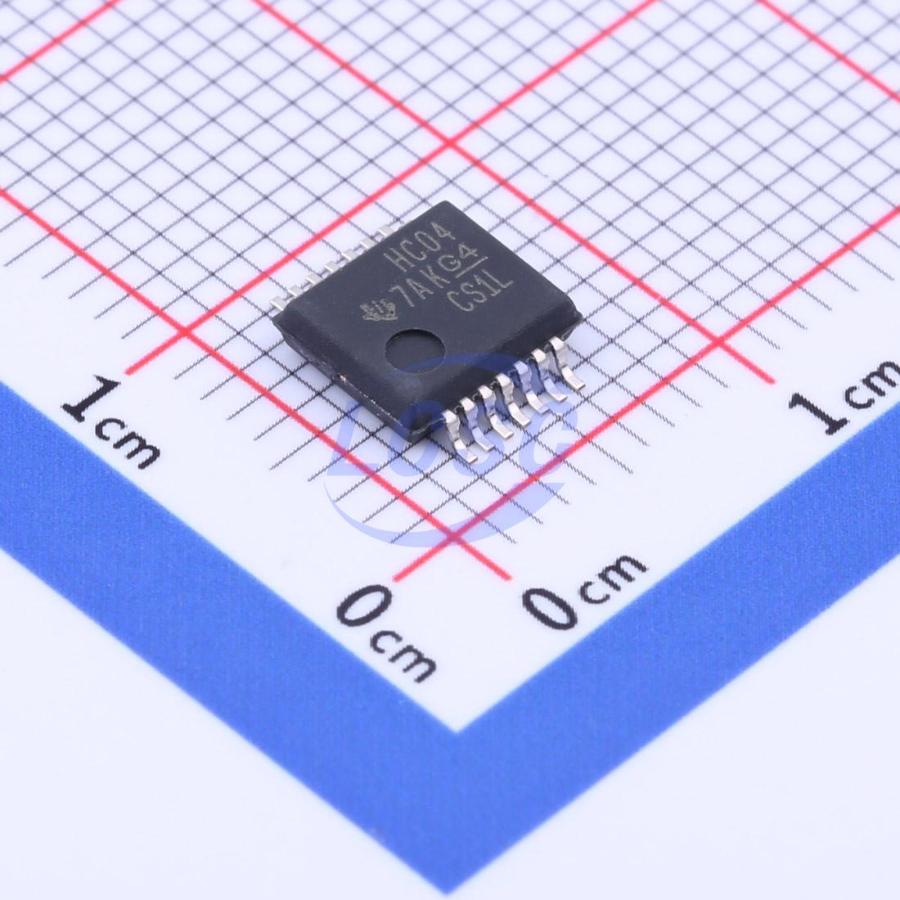

SN74HC04DBR
2V~6V 16ns@6V,50pF 2uA 6 SSOP-14-208mil Gates and Inverters RoHS
SSOP-14-208milROHS3 CompliantActive
SNx4HC04 Hex Inverter
- Manufacturer
- TI
- Manufacturer part #
- SN74HC04DBR
- Store part #
- C2682062
- Package / case
- SSOP-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,185 in stock
#C2682062
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.96 | ₹224.80 |
| 50+ | ₹36.05 | ₹1,802.50 |
| 150+ | ₹31.70 | ₹4,755.00 |
| 500+ | ₹27.82 | ₹13,910.00 |
| 2,000+ | ₹26.75 | ₹53,500.00 |
| 4,000+ | ₹26.12 | ₹1,04,480.00 |
5 × ₹44.96
₹224.80
excl. GST
₹265.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC04DBR
₹224.80 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 16ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
Key features
- Buffered inputs
- Wide supply voltage range: 2V to 6V
- Wide operating temperature range: -40℃ to +85℃
- Fan-out supporting up to 10 LSTTL loads
- Significantly reduced power consumption compared to LSTTL logic ICs
- Synchronous inverting clock input for switch debouncing and digital signal inversion
