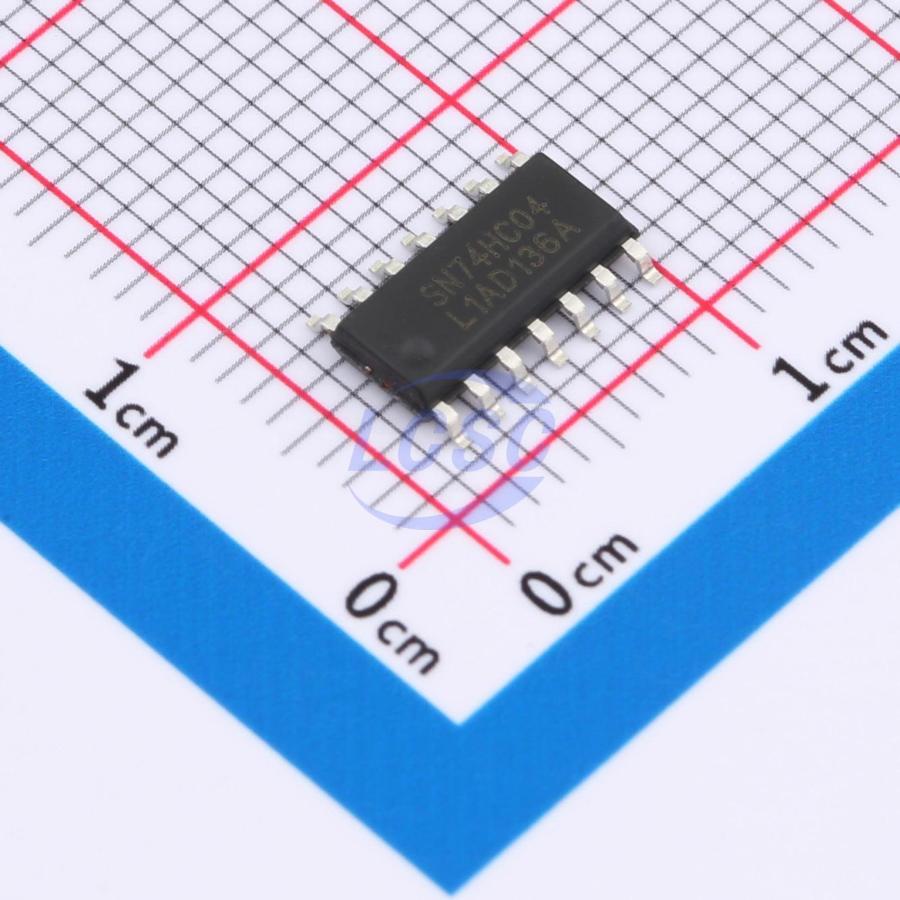

SN74HC04DR(LX)
StandardCMOS 2V~6V 14ns@6V,50pF 2uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
Hex Inverters
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC04DR(LX)
- Store part #
- C22436975
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,370 in stock
#C22436975
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.76 | ₹97.60 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹6.95 | ₹2,085.00 |
| 1,000+ | ₹6.24 | ₹6,240.00 |
| 4,000+ | ₹5.49 | ₹21,960.00 |
| 8,000+ | ₹5.21 | ₹41,680.00 |
10 × ₹9.76
₹97.60
excl. GST
₹115.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC04DR(LX)
₹97.60 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 14ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.255 g
