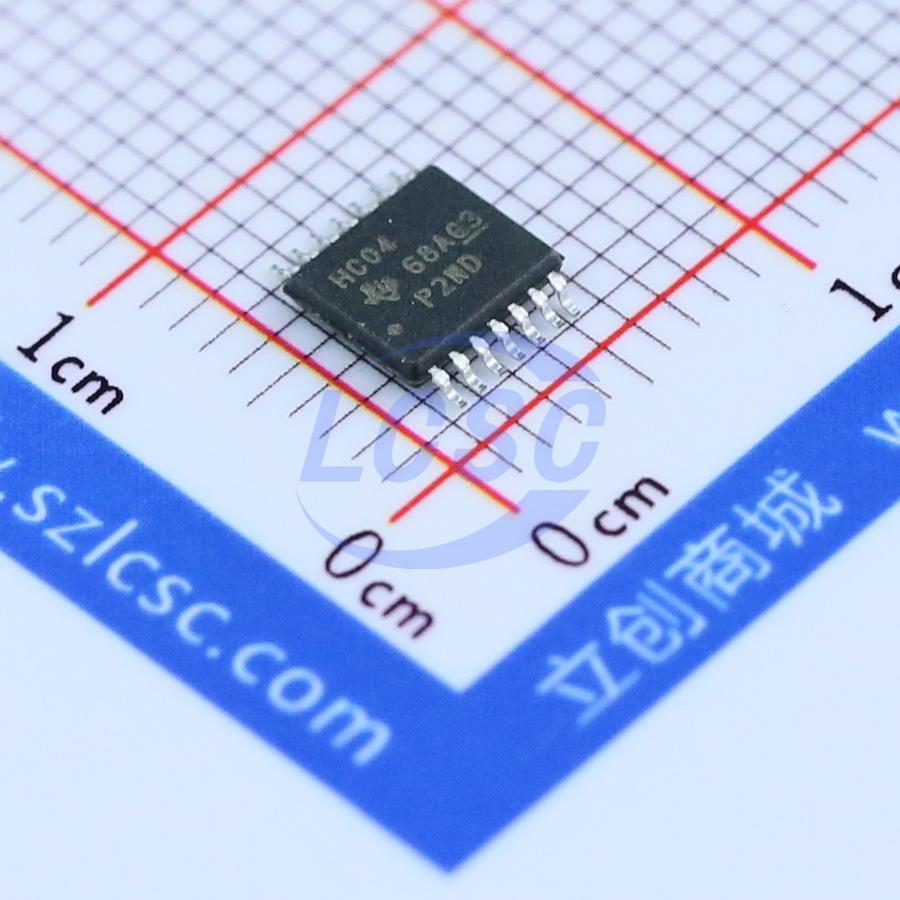

SN74HC04PWR
2V~6V 16ns@6V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
HEX INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC04PWR
- Store part #
- C6810
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,820 in stock
#C6810
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.96 | ₹144.80 |
| 50+ | ₹22.45 | ₹1,122.50 |
| 150+ | ₹19.67 | ₹2,950.50 |
| 500+ | ₹16.19 | ₹8,095.00 |
| 2,000+ | ₹13.77 | ₹27,540.00 |
| 4,000+ | ₹12.85 | ₹51,400.00 |
5 × ₹28.96
₹144.80
excl. GST
₹170.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC04PWR
₹144.80 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 16ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The HC04 device contains six independent inverters that implement the Boolean function Y = NOT A in positive logic. The SN54HC04 is available in J, W, or FK packages, and the SN74HC04 is available in D, DB, N, NS, or PW packages; NC indicates no internal connection.
Key features
- Operating voltage range: 2 V to 6 V
- Output drives up to 10 LSTTL loads
- Low power consumption, Icc max 20 μA
- Typical tpd of 8 ns
- Output drive capability ±4 mA at 5 V
- Maximum input current 1 μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74HC04TA14.TR#C5162248Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | On request | ₹13.81 · 0 in stock | View |
