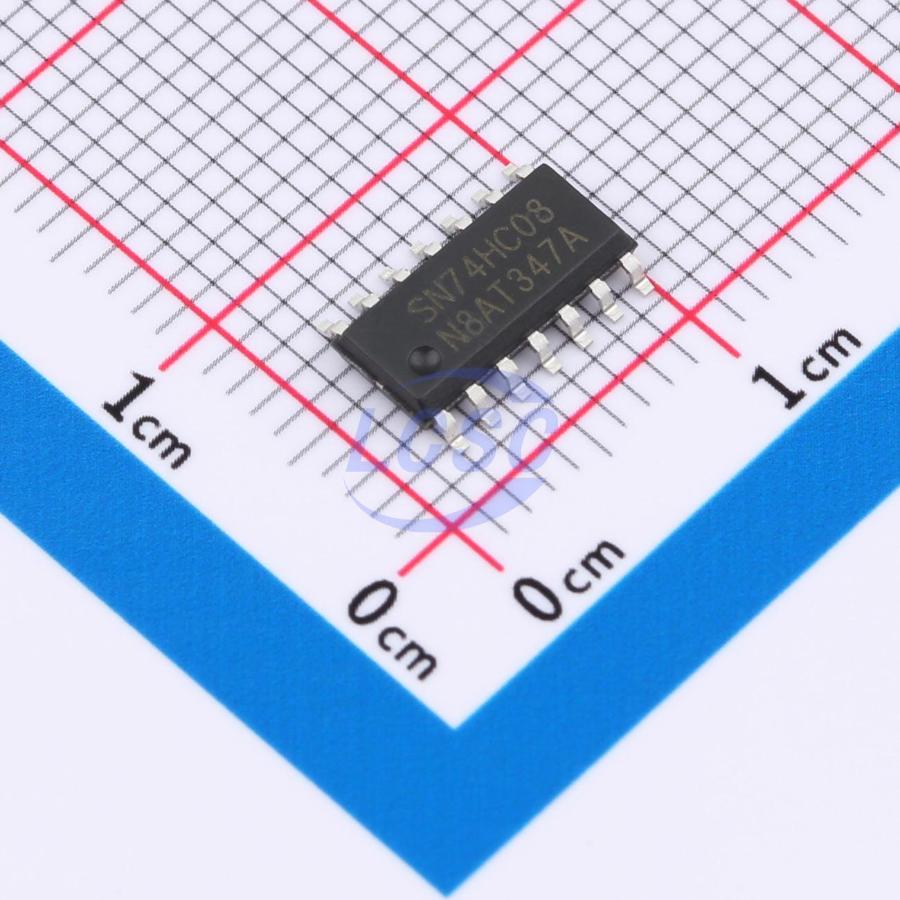

SN74HC08DR(LX)
AND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
IC GATE AND 4CH 2-INP SOP-14
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC08DR(LX)
- Store part #
- C22436981
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C22436981
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.57 | ₹52.85 |
| 50+ | ₹8.28 | ₹414.00 |
| 150+ | ₹7.13 | ₹1,069.50 |
| 500+ | ₹6.27 | ₹3,135.00 |
| 2,500+ | ₹5.95 | ₹14,875.00 |
| 4,000+ | ₹5.61 | ₹22,440.00 |
5 × ₹10.57
₹52.85
excl. GST
₹62.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC08DR(LX)
₹52.85 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 15ns@6V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;3.98V~4.5V;5.48V~6V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS08DR(LX)#C22384802lingxingic · SOP-14 | lingxingic | SOP-14 | 590 | ₹16.42 · 590 in stock | View |
