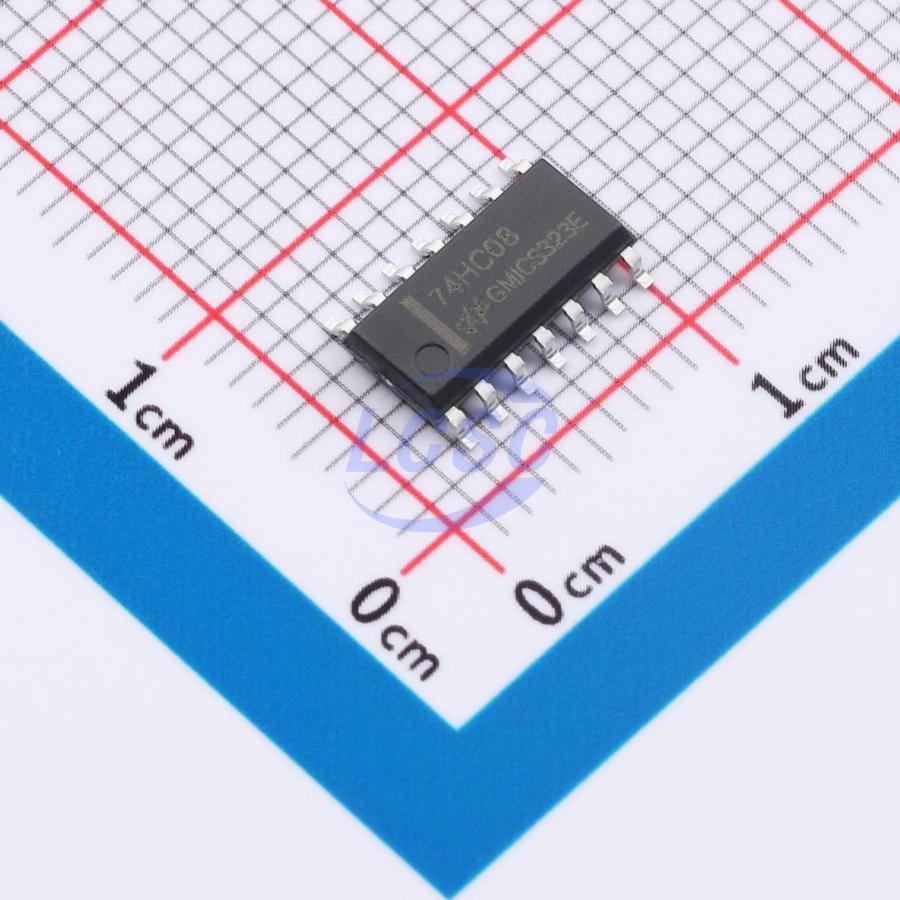

SN74HC08DS
2uA 2V~6V 15ns@6V,50pF SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SN74HC08DS
- Store part #
- C51927314
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,510 in stock
#C51927314
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.53 | ₹95.30 |
| 100+ | ₹7.58 | ₹758.00 |
| 300+ | ₹6.60 | ₹1,980.00 |
| 1,000+ | ₹5.87 | ₹5,870.00 |
| 4,000+ | ₹5.29 | ₹21,160.00 |
| 8,000+ | ₹5.00 | ₹40,000.00 |
10 × ₹9.53
₹95.30
excl. GST
₹112.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC08DS
₹95.30 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Logic Family
- 74HC Series
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;3.98V~4.32V;5.48V~5.81V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 15ns@6V,50pF
- Output Logic Level - Low
- 0V~260mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.274 g
Overview
The 74HC08 contains four independent 2-input AND gates, performing the Boolean function Y = (Ā · B̄)' or Y = A + B (positive logic).
Key features
- Operating voltage range: 2~6V
- Low quiescent current: ICC = 2μA (max)
- High speed: tPD = 8ns (typ)
- Low input current: 100nA (max)
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 2023) exceeds 1000V; CDM (ANSI/ESDA/JEDEC JS-002 2022) exceeds 2000V
- Latch-up performance ≤ 250mA
- Package options: DIP-14, SOP-14, and TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS08DS#C52092045GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 2,100 | ₹13.55 · 2,100 in stock | View |
