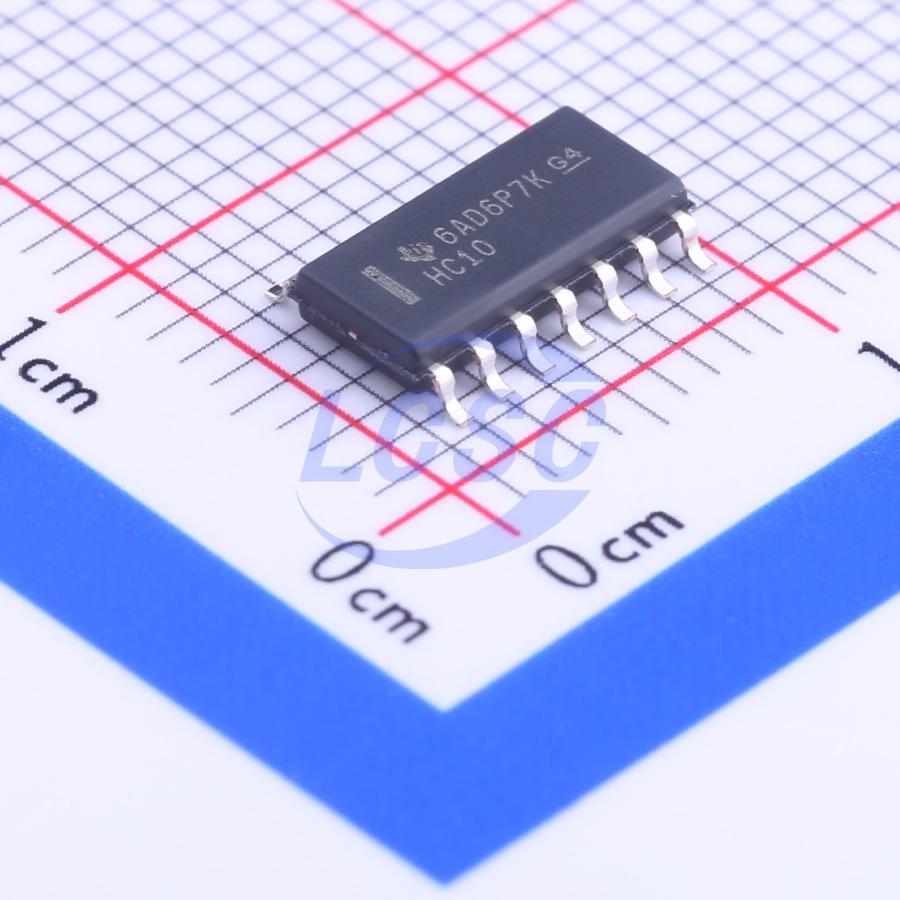

SN74HC10DR
2uA 2V~6V 16ns@6V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
TRIPLE 3-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HC10DR
- Store part #
- C6816
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,410 in stock
#C6816
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.09 | ₹275.45 |
| 50+ | ₹45.05 | ₹2,252.50 |
| 150+ | ₹40.75 | ₹6,112.50 |
| 500+ | ₹35.38 | ₹17,690.00 |
| 2,500+ | ₹30.72 | ₹76,800.00 |
| 5,000+ | ₹29.29 | ₹1,46,450.00 |
5 × ₹55.09
₹275.45
excl. GST
₹325.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC10DR
₹275.45 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 5.2mA
- Output Logic Level - Low
- 100mV;260mV;330mV
- Propagation Delay
- 16ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The 'HC10 devices contain three independent 3-input NAND gates. They perform the Boolean function Y = (A•B•C)(overline) or Y = A(overline) + B(overline) + C(overline) in positive logic.
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 μA Max Icc
- Typical tpd = 9 ns
- ± 4 mA Output Drive at 5 V
- Low Input Current of 1 A Max
