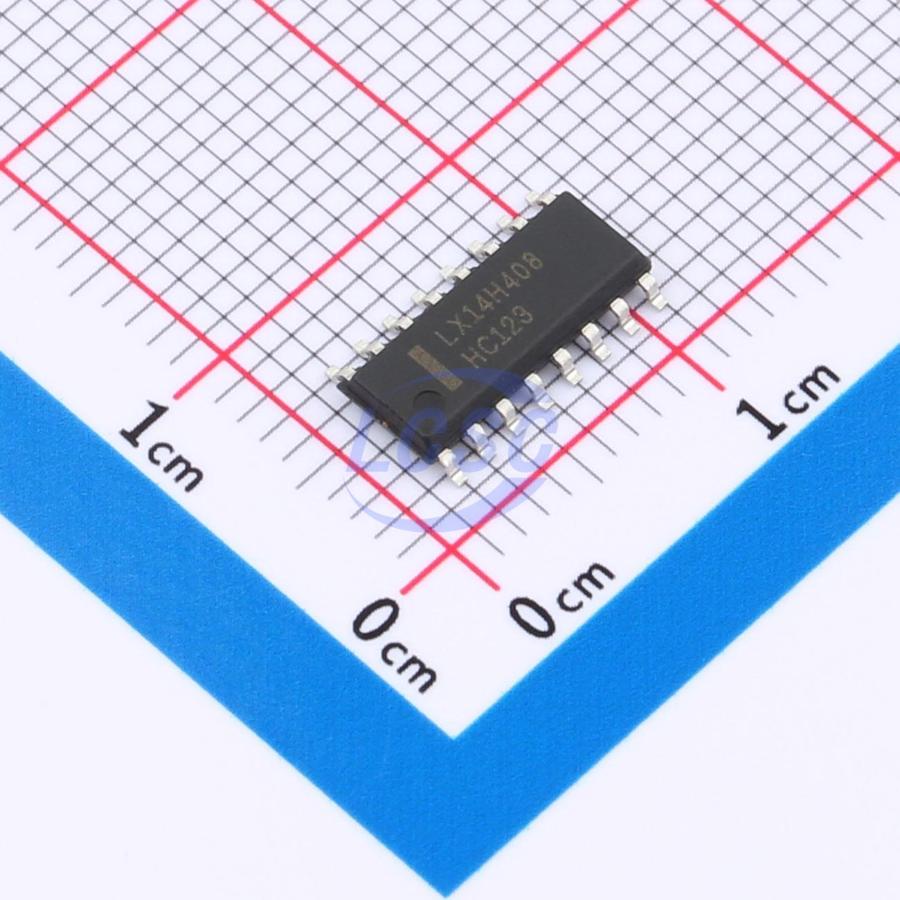

SN74HC123DR(LX)
SOP-16 Multivibrators
SN74HC/HCT123 (LX) Dual Monostable Multivibrators with Reset
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC123DR(LX)
- Store part #
- C22449638
- Package / case
- SOP-16
- Category
- Multivibrators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,185 in stock
#C22449638
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.40 | ₹102.00 |
| 50+ | ₹16.03 | ₹801.50 |
| 150+ | ₹14.16 | ₹2,124.00 |
| 500+ | ₹11.81 | ₹5,905.00 |
| 2,500+ | ₹10.78 | ₹26,950.00 |
| 4,000+ | ₹10.15 | ₹40,600.00 |
5 × ₹20.40
₹102.00
excl. GST
₹120.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC123DR(LX)
₹102.00 for 5 + GST
Specifications
- Logic Type
- Monostable
- Number Of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.269 g
Overview
The SN74HC/HCT123 are high-speed silicon gate CMOS devices with pin compatibility with Low-power Schottky TTL (LSTTL). The SN74HC/HCT123 are dual retriggerable monostable multivibrators with output pulse width controlled by three methods: 1. The basic pulse is programmed by selecting external resistor (REXT) and capacitor (CEXT). 2. Once triggered, the basic output pulse width can be extended by retriggering via the active falling-edge input (nA) or active rising-edge input (nB). By repeating this process, the output pulse period (nQ=HIGH, nQ(overline)=LOW) can be made as long as desired. Alternatively, the output delay can be terminated at any time by a low-level transition on input nRD, which inhibits triggering. 3. An internal connection from nRD to the input gate allows a HIGH signal at input nRD to trigger the circuit.
Key features
- Retriggerable, suitable for very long pulses with duty cycle up to 100%
- Direct reset to terminate output pulse
- Operating temperature range: -40℃~+125℃
- Package: DIP16/SOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS123DR(LX)#C22449640lingxingic · SOP-16 | lingxingic | SOP-16 | 590 | ₹38.34 · 590 in stock | View |
 | HEF4528BT(LX)#C52711167lingxingic · SOP-16 | lingxingic | SOP-16 | 1,530 | ₹30.52 · 1,530 in stock | View |
 | CD4538BM(LX)#C32710637lingxingic · SOP-16 | lingxingic | SOP-16 | 3,645 | ₹35.55 · 3,645 in stock | View |
 | 74HC4538D(LX)#C52261124lingxingic · SOP-16 | lingxingic | SOP-16 | 310 | ₹40.13 · 310 in stock | View |
 | HEF4538BT(LX)#C52711168lingxingic · SOP-16 | lingxingic | SOP-16 | 9,710 | ₹32.49 · 9,710 in stock | View |
