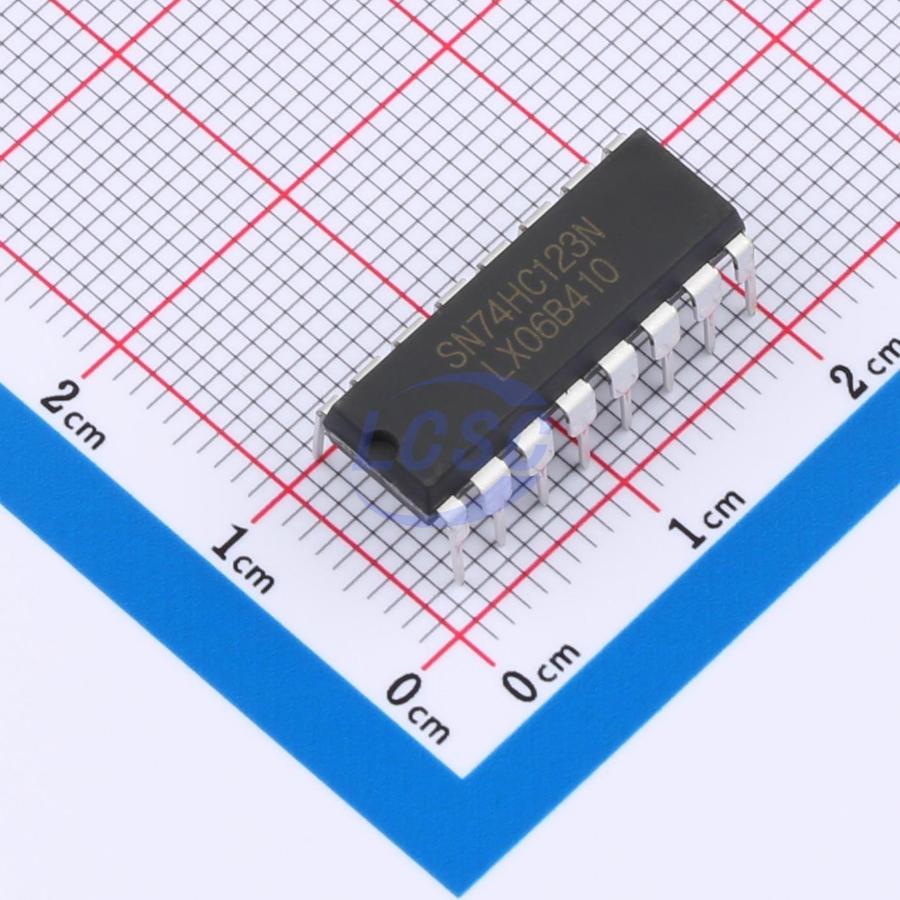

SN74HC123N(LX)
DIP-16 Multivibrators
SN74HC/HCT123 (LX) Dual Monostable Multivibrators with Reset
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC123N(LX)
- Store part #
- C22449637
- Package / case
- DIP-16
- Category
- Multivibrators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C22449637
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.99 | ₹184.95 |
| 50+ | ₹29.04 | ₹1,452.00 |
| 150+ | ₹25.64 | ₹3,846.00 |
| 500+ | ₹21.39 | ₹10,695.00 |
| 2,000+ | ₹19.50 | ₹39,000.00 |
| 5,000+ | ₹18.36 | ₹91,800.00 |
5 × ₹36.99
₹184.95
excl. GST
₹218.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC123N(LX)
₹184.95 for 5 + GST
Specifications
- Logic Type
- Monostable
- Number Of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.39 g
Overview
The SN74HC/HCT123 are high-speed silicon gate CMOS devices with pin compatibility with Low-power Schottky TTL (LSTTL). The SN74HC/HCT123 are dual retriggerable monostable multivibrators with output pulse width controlled by three methods: 1. The basic pulse is programmed by selecting external resistor (REXT) and capacitor (CEXT). 2. Once triggered, the basic output pulse width can be extended by retriggering via the active falling-edge input (nA) or active rising-edge input (nB). By repeating this process, the output pulse period (nQ=HIGH, nQ(overline)=LOW) can be made as long as desired. Alternatively, the output delay can be terminated at any time by a low-level transition on input nRD, which inhibits triggering. 3. An internal connection from nRD to the input gate allows a HIGH signal at input nRD to trigger the circuit.
Key features
- Retriggerable, suitable for very long pulses with duty cycle up to 100%
- Direct reset to terminate output pulse
- Operating temperature range: -40℃~+125℃
- Package: DIP16/SOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS123N(LX)#C22449639lingxingic · DIP-16 | lingxingic | DIP-16 | 217 | ₹65.91 · 217 in stock | View |
 | CD4538BE(LX)#C32710636lingxingic · DIP-16 | lingxingic | DIP-16 | 255 | ₹26.46 · 255 in stock | View |
