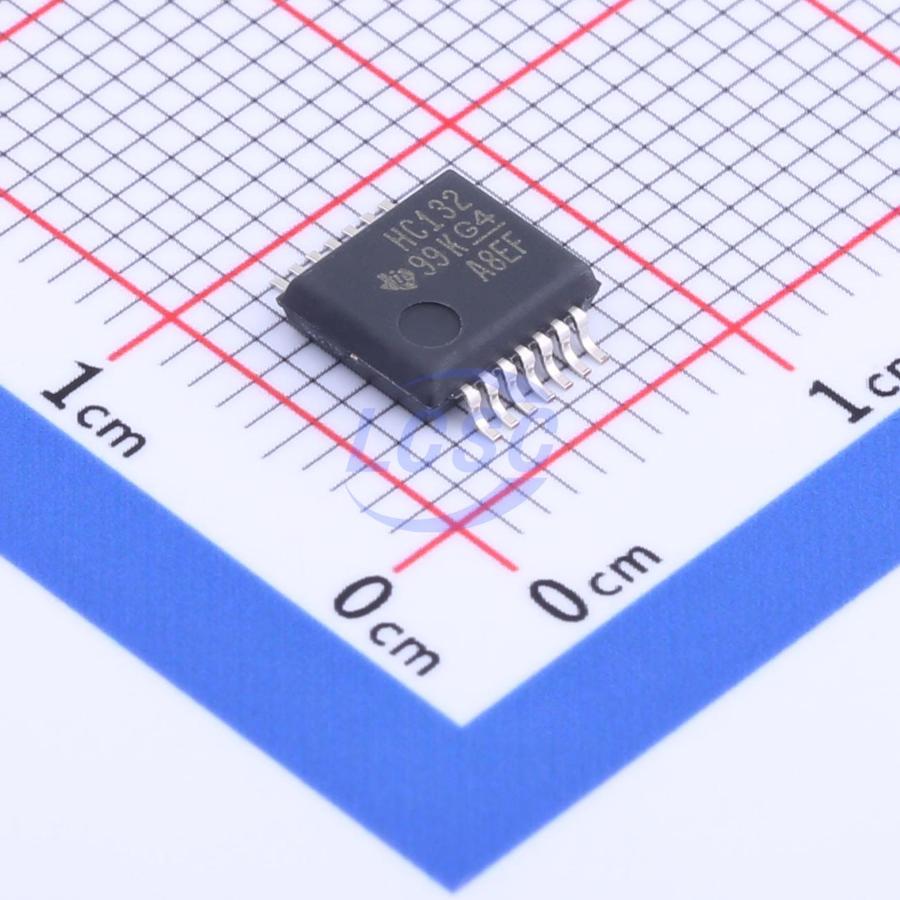

SN74HC132DBR
NAND Gate IC 4 Channel Schmitt Trigger input SSOP-14-208mil
SSOP-14-208milROHS3 CompliantActive
Quadruple 2-Input NAND Gates with Schmitt-Trigger Inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC132DBR
- Store part #
- C2682064
- Package / case
- SSOP-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,921 in stock
#C2682064
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.63 | ₹50.63 |
| 10+ | ₹39.77 | ₹397.70 |
| 30+ | ₹34.56 | ₹1,036.80 |
| 100+ | ₹29.77 | ₹2,977.00 |
| 500+ | ₹28.47 | ₹14,235.00 |
| 1,000+ | ₹27.60 | ₹27,600.00 |
1 × ₹50.63
₹50.63
excl. GST
₹59.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC132DBR
₹50.63 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;170mV~330mV;150mV~330mV
- Propagation Delay
- 21ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 300mV~1.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;3.84V~4.3V;5.34V~5.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.425 g
Overview
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Buffered inputs
- Wide operating temperature range: -40℃ to +85℃
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
