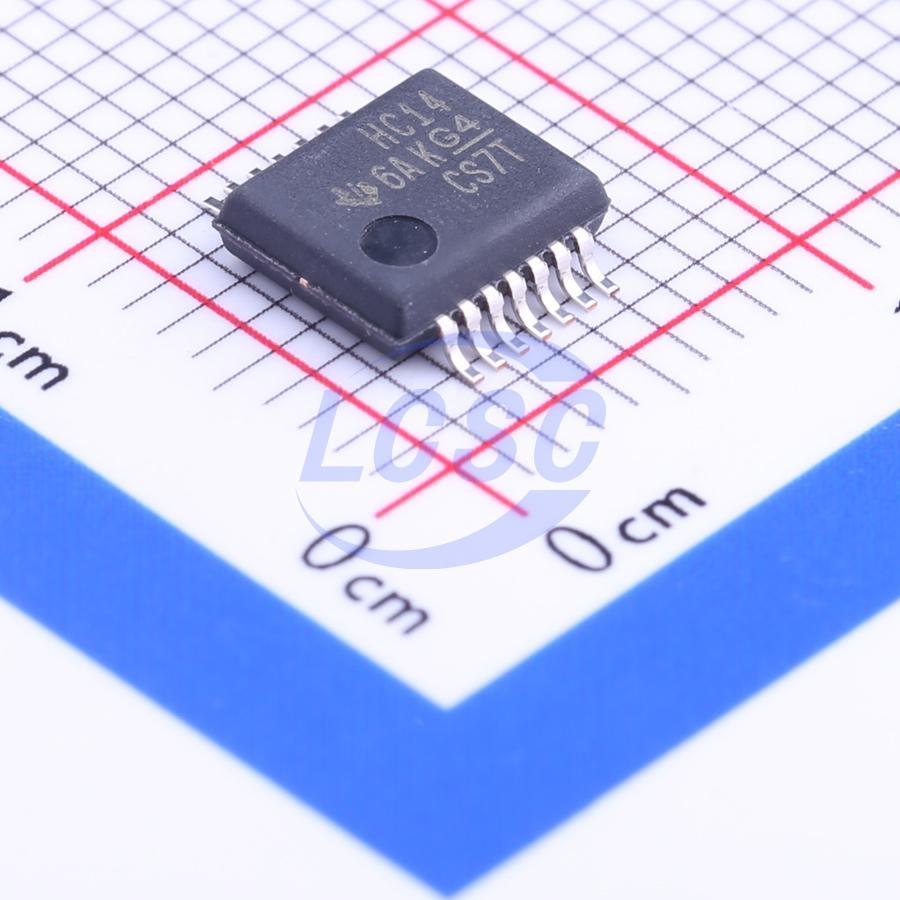

SN74HC14DBR
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 SSOP-14-208mil Gates and Inverters RoHS
SSOP-14-208milROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74HC14DBR
- Store part #
- C8151
- Package / case
- SSOP-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C8151
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.93 | ₹224.65 |
| 50+ | ₹36.42 | ₹1,821.00 |
| 150+ | ₹32.77 | ₹4,915.50 |
| 500+ | ₹28.22 | ₹14,110.00 |
| 2,000+ | ₹26.20 | ₹52,400.00 |
| 4,000+ | ₹24.98 | ₹99,920.00 |
5 × ₹44.93
₹224.65
excl. GST
₹265.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC14DBR
₹224.65 for 5 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
WIDE Operating Voltage Range of 2 V to 6 V - Outputs Can Drive Up to 10 LSTTL Loads - Low Power Consumption, 20 - μA Max ICC - Typical Ipd = 11 ns - ±4 - mA Output Drive at 5 V - Low Input Current of 1 μA Max These Schmitt - trigger devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.
Key features
- Operating voltage range: 2 V to 6 V
- Output drives up to 10 LSTTL loads
- Low power consumption, Icc max 20μA
- Typical propagation delay tpd = 11 ns
- Output drive current ±4 mA at 5 V
- Maximum input current 1μA
