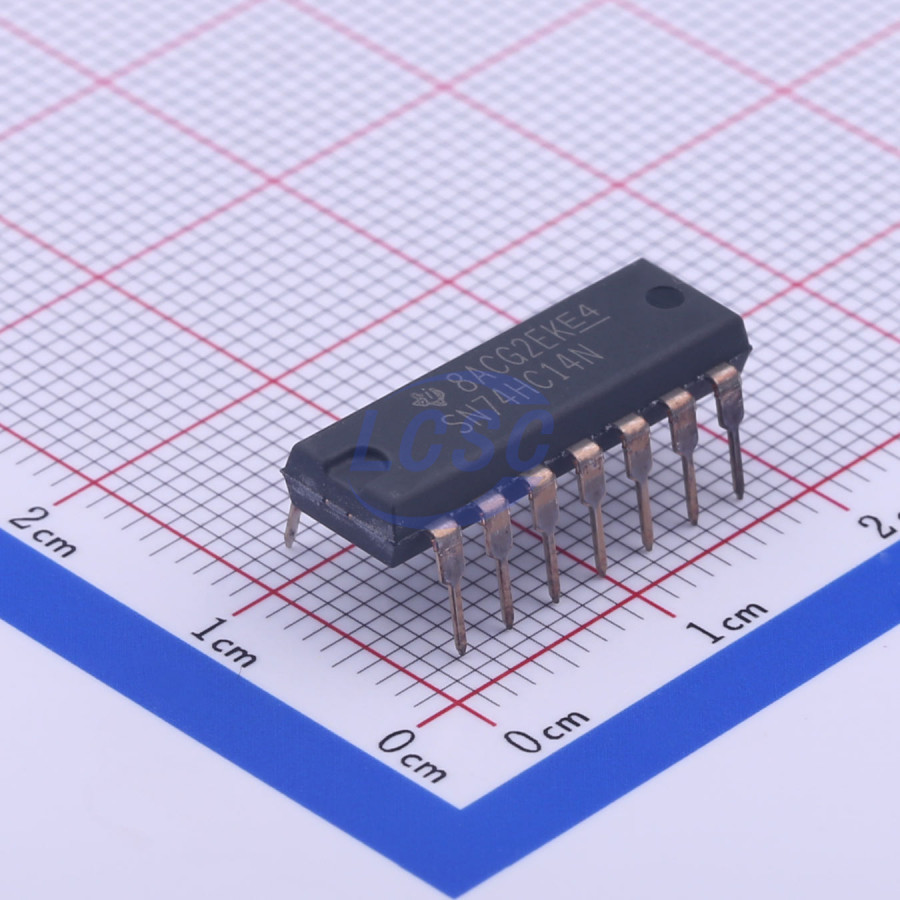

SN74HC14N
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 DIP-14 Gates and Inverters RoHS
DIP-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74HC14N
- Store part #
- C2907
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,182 in stock
#C2907
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹149.26 | ₹149.26 |
| 10+ | ₹121.45 | ₹1,214.50 |
| 25+ | ₹98.85 | ₹2,471.25 |
| 100+ | ₹85.17 | ₹8,517.00 |
| 500+ | ₹76.92 | ₹38,460.00 |
| 1,000+ | ₹72.57 | ₹72,570.00 |
1 × ₹149.26
₹149.26
excl. GST
₹176.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC14N
₹149.26 for 1 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.76 g
Overview
These Schmitt trigger devices contain six independent inverters that implement the Boolean function Y = A in positive logic. NC indicates no internal connection. This IC can be damaged by ESD; all ICs should be handled with appropriate precautions. Failure to comply with proper handling and installation procedures may cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision ICs may be more susceptible, as even minor parametric changes can cause the device to fall outside published specifications.
Key features
- Operating voltage range: 2 V to 6 V
- Output drives up to 10 LSTTL loads
- Low power consumption, Icc max 20 μA
- Typical propagation delay tpd of 11 ns
- Output drive current ±4 mA at 5 V
- Input current max 1 μA
