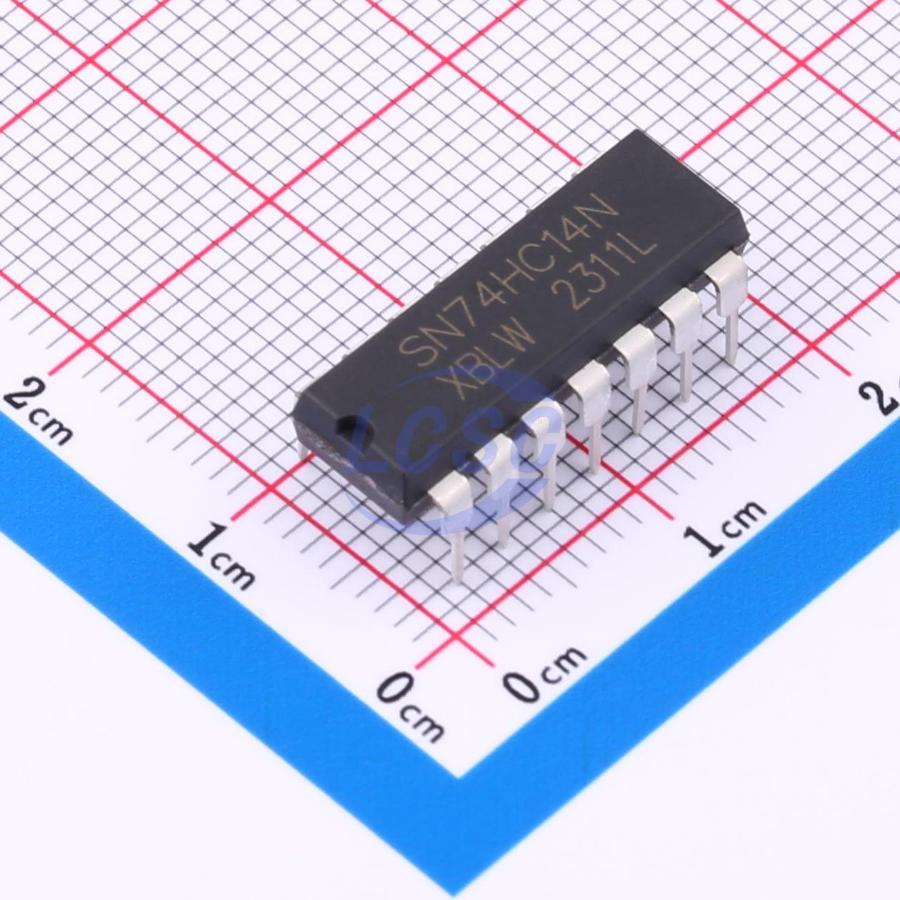

SN74HC14N(XBLW)
Schmitt trigger 2V~6V 12ns 2uA 6 DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Hex Inverting Schmitt Trigger
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC14N(XBLW)
- Store part #
- C18723505
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,440 in stock
#C18723505
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.43 | ₹107.15 |
| 50+ | ₹16.80 | ₹840.00 |
| 150+ | ₹14.82 | ₹2,223.00 |
| 500+ | ₹12.34 | ₹6,170.00 |
| 2,000+ | ₹11.25 | ₹22,500.00 |
| 5,000+ | ₹10.58 | ₹52,900.00 |
5 × ₹21.43
₹107.15
excl. GST
₹126.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC14N(XBLW)
₹107.15 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 12ns
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.5V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.639 g
Overview
The SN74HC14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt triger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Synchronize invterted clock inputs
- Debounce a switch
- Invert a digital signal
Key features
- CMOS Input levels
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Low-power dissipation
- Specified from -40℃ to +125℃
- Packaging information: DIP14/SOP14/TSSOP14
