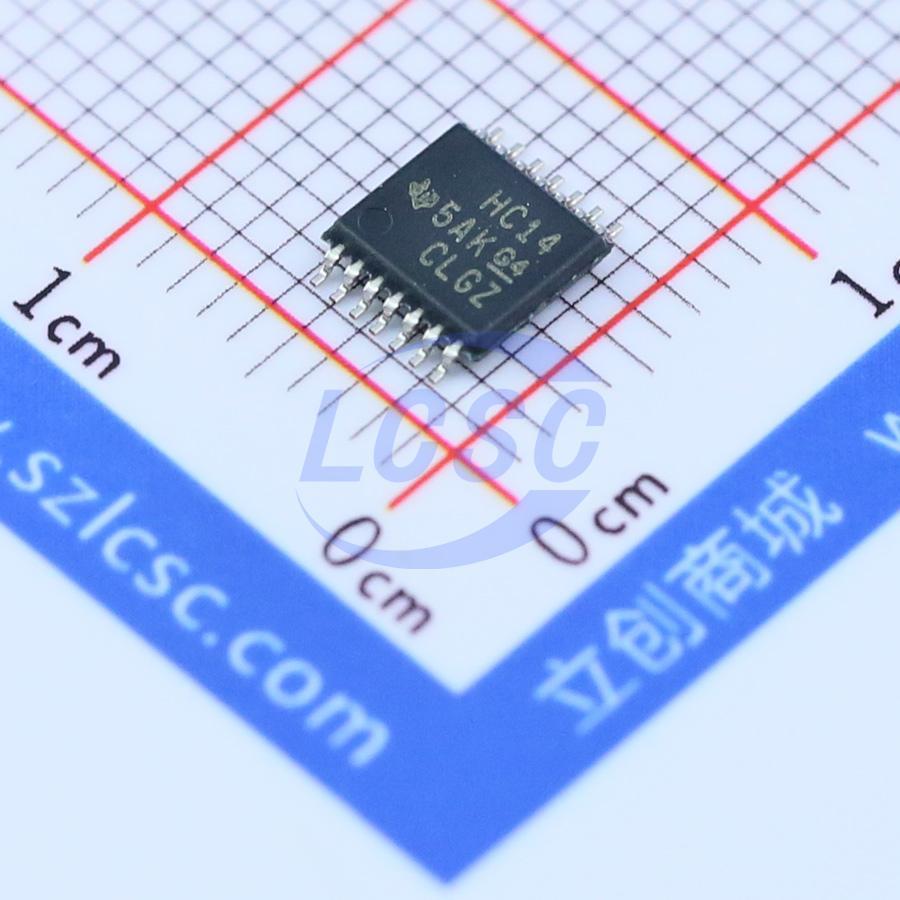

SN74HC14PWR
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74HC14PWR
- Store part #
- C6821
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
91,710 in stock
#C6821
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.37 | ₹141.85 |
| 50+ | ₹21.70 | ₹1,085.00 |
| 150+ | ₹18.43 | ₹2,764.50 |
| 500+ | ₹15.52 | ₹7,760.00 |
| 2,000+ | ₹14.72 | ₹29,440.00 |
| 4,000+ | ₹14.25 | ₹57,000.00 |
5 × ₹28.37
₹141.85
excl. GST
₹167.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC14PWR
₹141.85 for 5 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
WIDE Operating Voltage Range of 2 V to 6 V - Outputs Can Drive Up to 10 LSTTL Loads - Low Power Consumption, 20 - μA Max ICC - Typical Ipd = 11 ns - ±4 - mA Output Drive at 5 V - Low Input Current of 1 μA Max These Schmitt - trigger devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.
Key features
- Operating voltage range: 2 V to 6 V
- Output drives up to 10 LSTTL loads
- Low power consumption, Icc max 20μA
- Typical propagation delay tpd = 11 ns
- Output drive current ±4 mA at 5 V
- Maximum input current 1μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC14MT/TR#C5310770HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 1,860 | ₹19.40 · 1,860 in stock | View |
 | 74HC14DMT/TR#C7432326HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 530 | ₹14.74 · 530 in stock | View |
