lingxingicDatasheet (PDF)

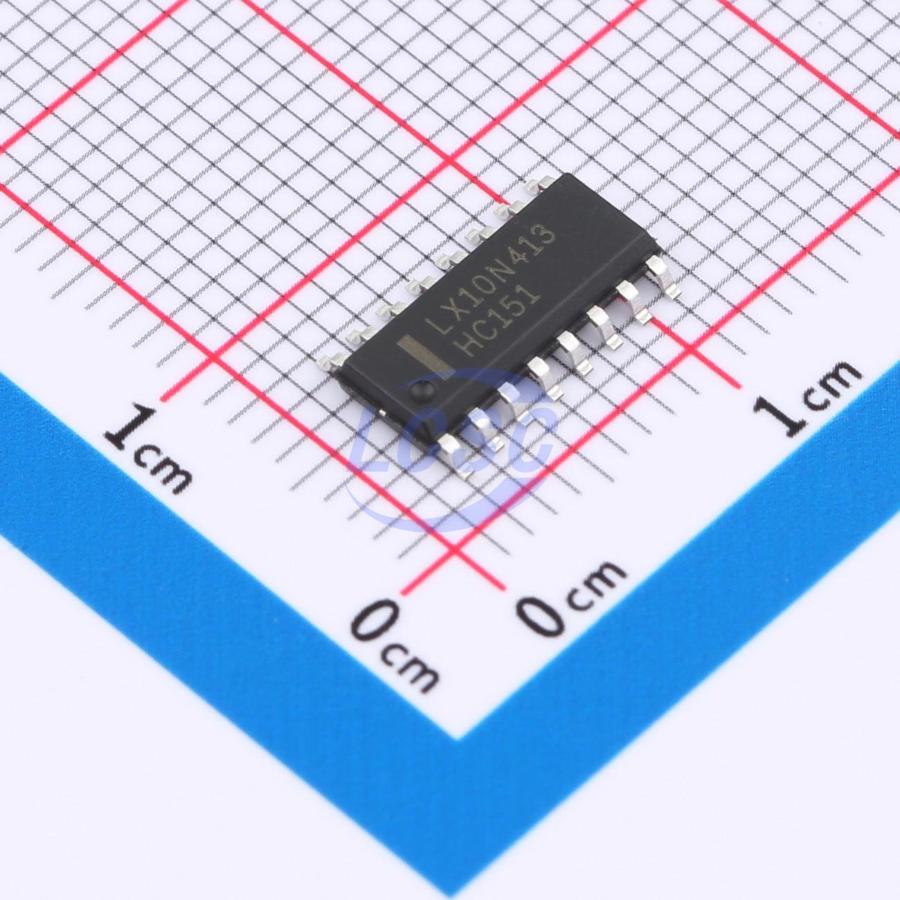

SN74HC151DR(LX)
8/2 2V~6V 8uA 15ns@6.0V,50pF SOP-16 Signal Switches, Multiplexers, Decoders
SOP-16RoHSActive
8-input Multiplexer
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC151DR(LX)
- Store part #
- C22437000
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,480 in stock
#C22437000
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.21 | ₹131.05 |
| 50+ | ₹20.96 | ₹1,048.00 |
| 150+ | ₹18.71 | ₹2,806.50 |
| 500+ | ₹15.89 | ₹7,945.00 |
| 2,500+ | ₹14.63 | ₹36,575.00 |
| 5,000+ | ₹13.88 | ₹69,400.00 |
5 × ₹26.21
₹131.05
excl. GST
₹154.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC151DR(LX)
₹131.05 for 5 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HC
- Number of Channels
- 8/2
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+105℃
- Quiescent Current
- 8uA
- Current - Output High(IOH)
- 5.2mA
- Propagation Delay
- 15ns@6.0V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
The SN74HC/HCT151 are 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y). A HIGH on E forces the output Y LOW and output Y HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels: For SN74HC151: CMOS level For SN74HCT151: TTL level
- Low-power dissipation
- Non-inverting data path
- Specified from -40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS151DR(LX)#C22384799lingxingic · SOP-16 | lingxingic | SOP-16 | 1,030 | ₹41.22 · 1,030 in stock | View |
