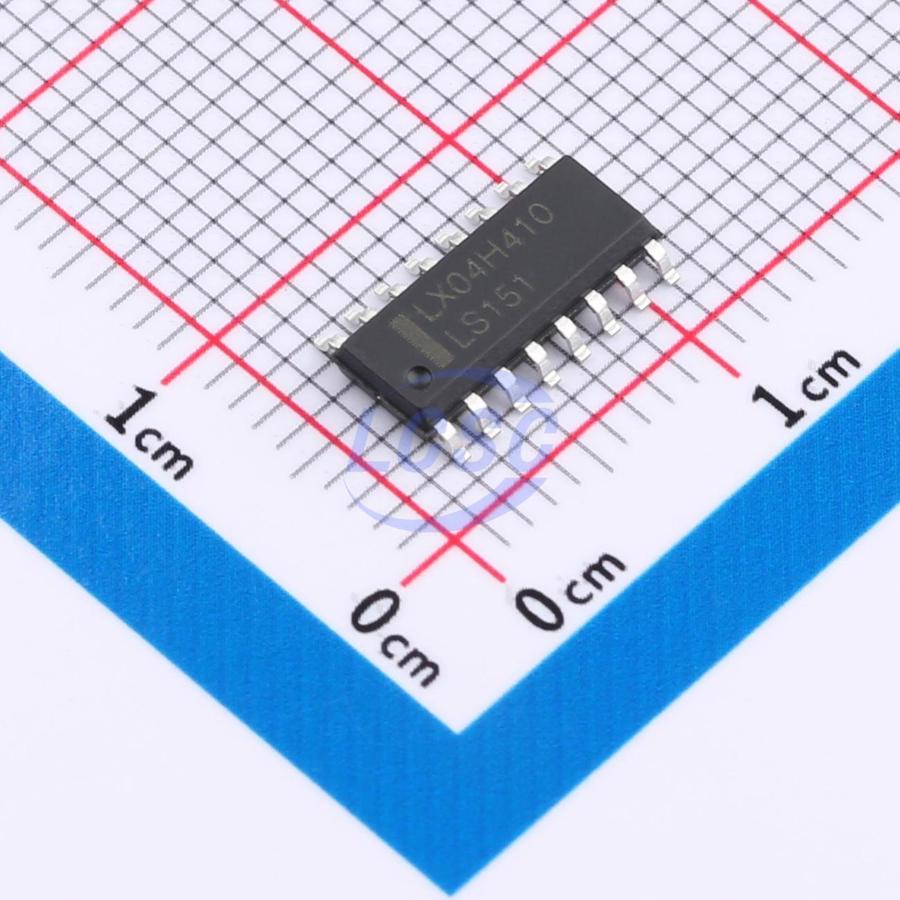

lingxingic

SN74LS151DR(LX)

8/2 2V~6V 8uA 15ns@6.0V,50pF SOP-16 Signal Switches, Multiplexers, Decoders

SOP-16RoHSActive

8-input Multiplexer

Manufacturer: lingxingic
Manufacturer part #: SN74LS151DR(LX)
Store part #: C22384799
Package / case: SOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,030 in stock

#C22384799

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹41.22	₹206.10
50+	₹32.57	₹1,628.50
150+	₹28.87	₹4,330.50
500+	₹24.25	₹12,125.00
2,500+	₹23.22	₹58,050.00
5,000+	₹21.98	₹1,09,900.00

Quantity (min 5, multiples of 5)

5 × ₹41.22

₹206.10

excl. GST

₹243.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74LS151DR(LX)

₹206.10 for 5 + GST

Specifications

Type: Multiplexer
Series: 74LS
Number of Channels: 8/2
Voltage - Supply: 2V~6V
Operating Temperature: -40℃~+125℃
Quiescent Current: 8uA
Current - Output High(IOH): 5.2mA
Propagation Delay: 15ns@6.0V,50pF
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.268 g

Overview

The SN74LS151 are 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs ( S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y(overline)). A HIGH on E(overline) forces the output Y LOW and output Y(overline) HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of Vcc.
