XBLWDatasheet (PDF)

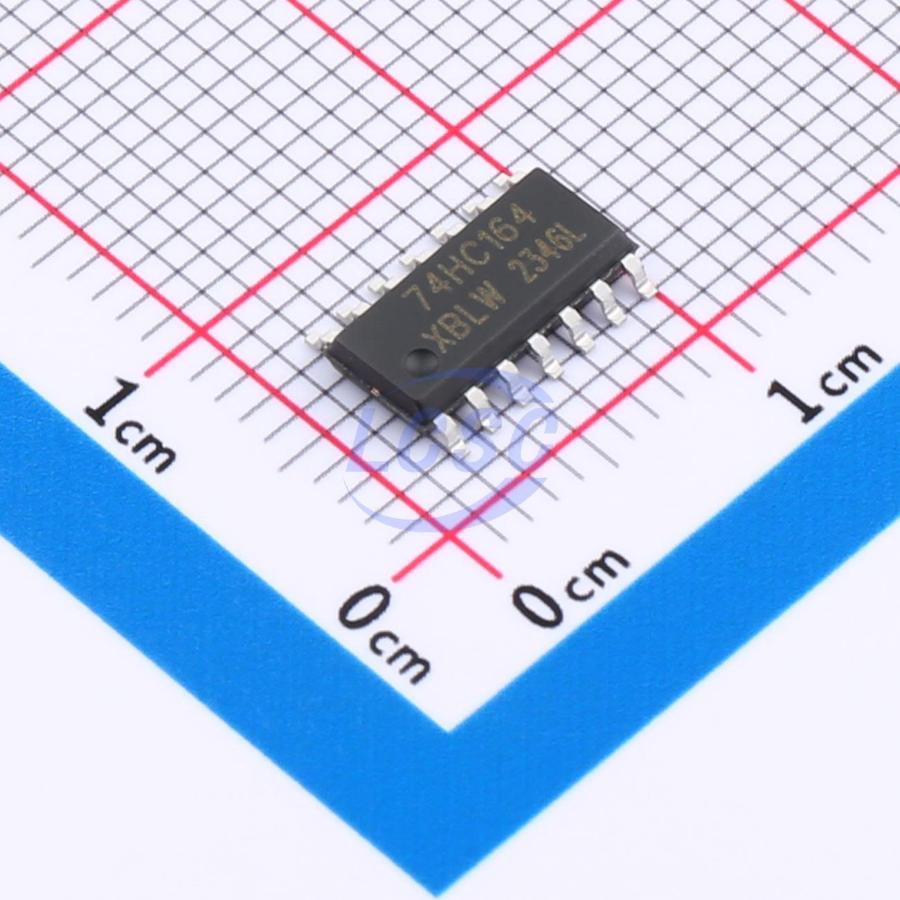

SN74HC164DTR(XBLW)
2V~6V 1 25mA 12ns Serial-to-Parallel SOP-14 Shift Registers RoHS
SOP-14ROHS CompliantActive
8-bit Serial-in, Parallel-out Shift Register
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC164DTR(XBLW)
- Store part #
- C20612518
- Package / case
- SOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,030 in stock
#C20612518
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.18 | ₹1,854.00 |
| 2,500+ | ₹5.49 | ₹13,725.00 |
| 5,000+ | ₹4.93 | ₹24,650.00 |
| 10,000+ | ₹4.64 | ₹46,400.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC164DTR(XBLW)
₹89.70 for 10 + GST
Specifications
- Operating temperature
- -40℃~+105℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 12ns
- Features
- Asynchronous clear function
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.265 g
Overview
The SN74HC164 is an 8-bit serial-in/parallel-out shift register. The device features two serial data inputs (DSA and DSB), eight parallel data outputs (Q0 to Q7). Data is entered serially through DSA or DSB and either input can be used as an active HIGH enable for data entry through the other input. Data is shifted on the LOW-to-HIGH transitions of the clock (CP) input. A LOW on the master reset input (MR) clears the register and forces all outputs LoW, independently of other inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Gated serial data inputs
- Asynchronous master reset
- Specified from -40℃ to +125℃
