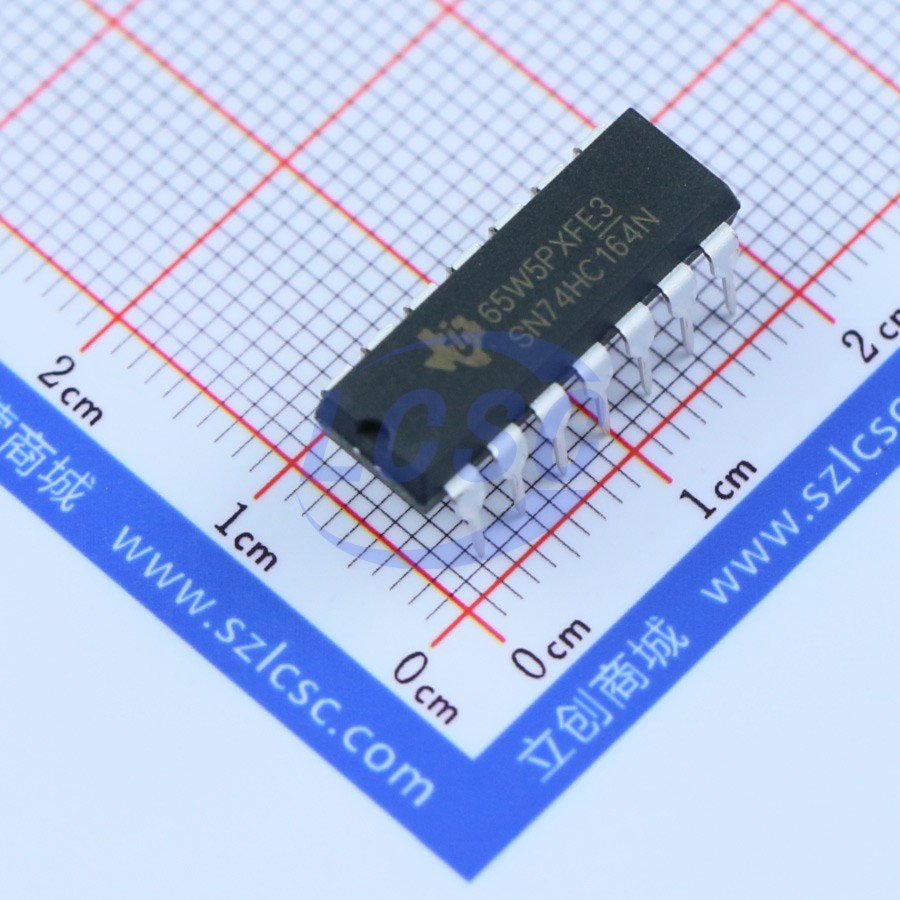

SN74HC164N
2V~6V 1 4mA 20ns@6V,50pF Serial-to-Parallel DIP-14 Shift Registers RoHS
DIP-14ROHS3 CompliantActive
8-Bit Parallel-Out Serial Shift Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74HC164N
- Store part #
- C2908
- Package / case
- DIP-14
- Category
- Shift Registers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,150 in stock
#C2908
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.36 | ₹201.80 |
| 50+ | ₹29.86 | ₹1,493.00 |
| 150+ | ₹26.14 | ₹3,921.00 |
| 500+ | ₹21.51 | ₹10,755.00 |
| 2,500+ | ₹19.46 | ₹48,650.00 |
| 5,000+ | ₹18.22 | ₹91,100.00 |
5 × ₹40.36
₹201.80
excl. GST
₹238.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC164N
₹201.80 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 4mA
- Series
- 74HC
- Current - Output Low(IOL)
- 4mA
- Number of Elements
- 1
- Output Current
- 4mA
- Features
- Asynchronous clear function
- Propagation Delay
- 20ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.84 g
Overview
These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
Applications
- Programmable Logic Controllers
- Appliances
- Video Display Systems
- Output Expander
Key features
- Wide Operating Voltage Range of 2V to 6V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption, 80 μA Maximum ICC
- Typical tpd = 20 ns
- ±4 mA Output Drive at 5V
- Low Input Current of 1 μA Maximum
- AND-Gated (Enable/Disable) Serial Inputs
- Fully Buffered Clock and Serial Inputs
- Direct Clear
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG74HC164N#C19193511HGSEMI · DIP-14 | HGSEMI | DIP-14 | 1,170 | ₹20.67 · 1,170 in stock | View |
 | 74HC164N#C507185HGSEMI · DIP-14 | HGSEMI | DIP-14 | 1,310 | ₹22.32 · 1,310 in stock | View |
 | AiP74HC164DA14.TB#C51940079Wuxi I-core Elec · DIP-14 | Wuxi I-core Elec | DIP-14 | 985 | ₹26.62 · 985 in stock | View |
