XBLWDatasheet (PDF)

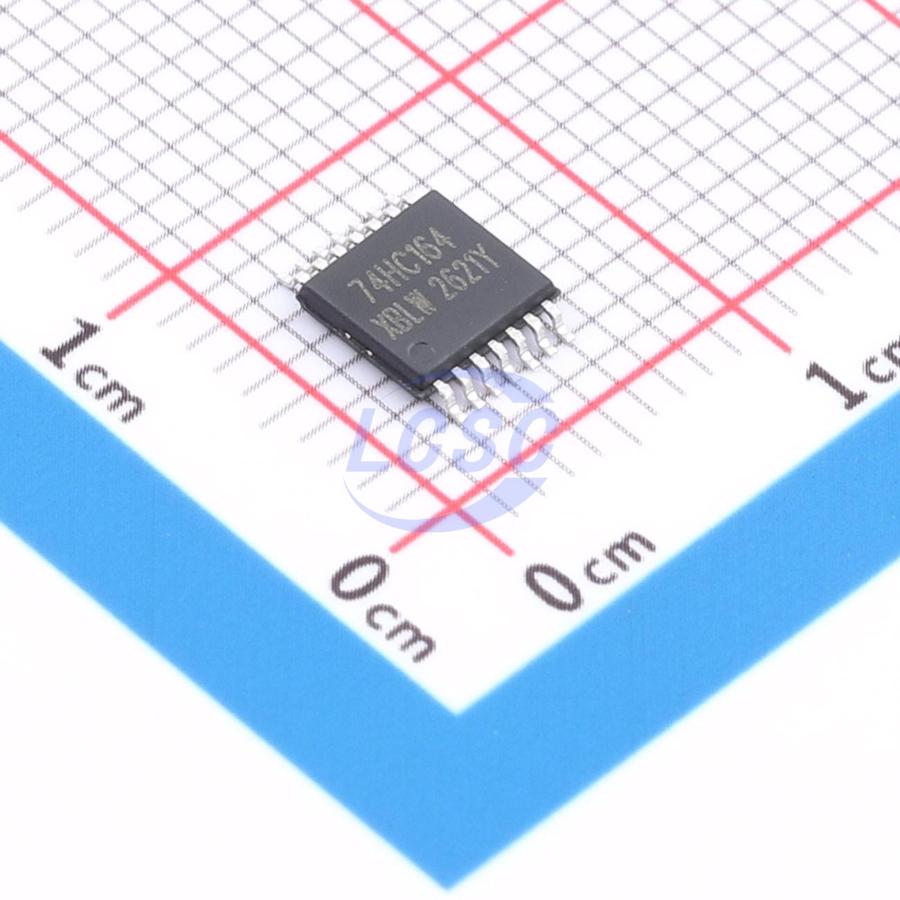

SN74HC164TDTR(XBLW)
2V~6V 1 Serial-to-Parallel TSSOP-14 Shift Registers RoHS
TSSOP-14ROHS CompliantActive
8-bit serial-in parallel-out shift register
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC164TDTR(XBLW)
- Store part #
- C55109572
- Package / case
- TSSOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C55109572
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.17 | ₹75.85 |
| 50+ | ₹12.07 | ₹603.50 |
| 150+ | ₹10.52 | ₹1,578.00 |
| 500+ | ₹9.35 | ₹4,675.00 |
| 3,000+ | ₹8.43 | ₹25,290.00 |
| 6,000+ | ₹7.96 | ₹47,760.00 |
5 × ₹15.17
₹75.85
excl. GST
₹89.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74HC164TDTR(XBLW)
₹75.85 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Series
- SN74
- Number of Elements
- 1
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
The SN74HC164 is an 8-bit serial-in/parallel-out shift register. The device features two serial data inputs (DSA and DSB), eight parallel data outputs (Q0 to Q7). Data is entered serially through DSA or DSB and either input can be used as an active HIGH enable for data entry through the other input. Data is shifted on the LOW-to-HIGH transitions of the clock (CP) input. A LOW on the master reset input (MR) clears the register and forces all outputs LoW, independently of other inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Gated serial data inputs
- Asynchronous master reset
- Specified from -40℃ to +125℃
