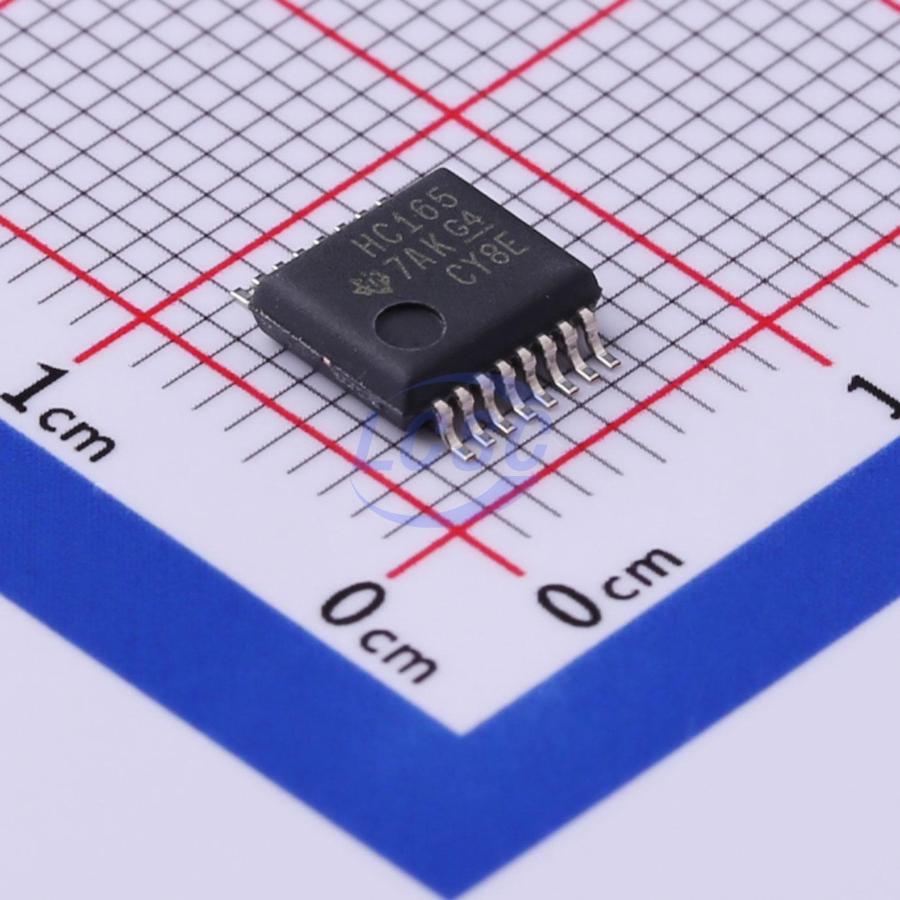

SN74HC165DBR

The SNx4HC165 devices are 8-bit parallel-load shift registers that, when clocked, shift the data toward a serial (ΩH) output. Parallel-in access to each stage is provided by eight individual direct data (A - H) inputs that are enabled by a low level at the shift/load (SH/LD) input. The SNx4HC165 devices also feature a clock-inhibit (CLK INH) function and a complementary serial (ΩH) output. Clocking is accomplished by a low-to-high transition of the clock (CLK) input while SH/LD is held high and CLK INH is held low. The functions of CLK and CLK INH are interchangeable. Because a low CLK and a low-to-high transition of CLK INH also accomplish clocking, CLK INH must be changed to the high level only while CLK is high. Parallel loading is inhibited when SH/LD is held high. While SH/LD is low, the parallel inputs to the register are enabled independently of the levels of the CLK, CLK INH, or serial (SER) inputs.

Applications

• Programable Logic Controllers
• Appliances
• Video Display Systems
• Output Expander
• Keyboards

Key features

• Wide Operating Voltage Range of 2 V to 6 V
• Outputs Can Drive Up to 10 LSTTL Loads
• Low Power Consumption, 80 μA Maximum ICC
• Typical fpd = 13 ns
• ±4 mA Output Drive at 5 V
• Low Input Current of 1 μA Maximum
• Complementary Outputs
• Direct Overriding Load (Data) Inputs
• Gated Clock Inputs
• Parallel-to-Serial Data Conversion
