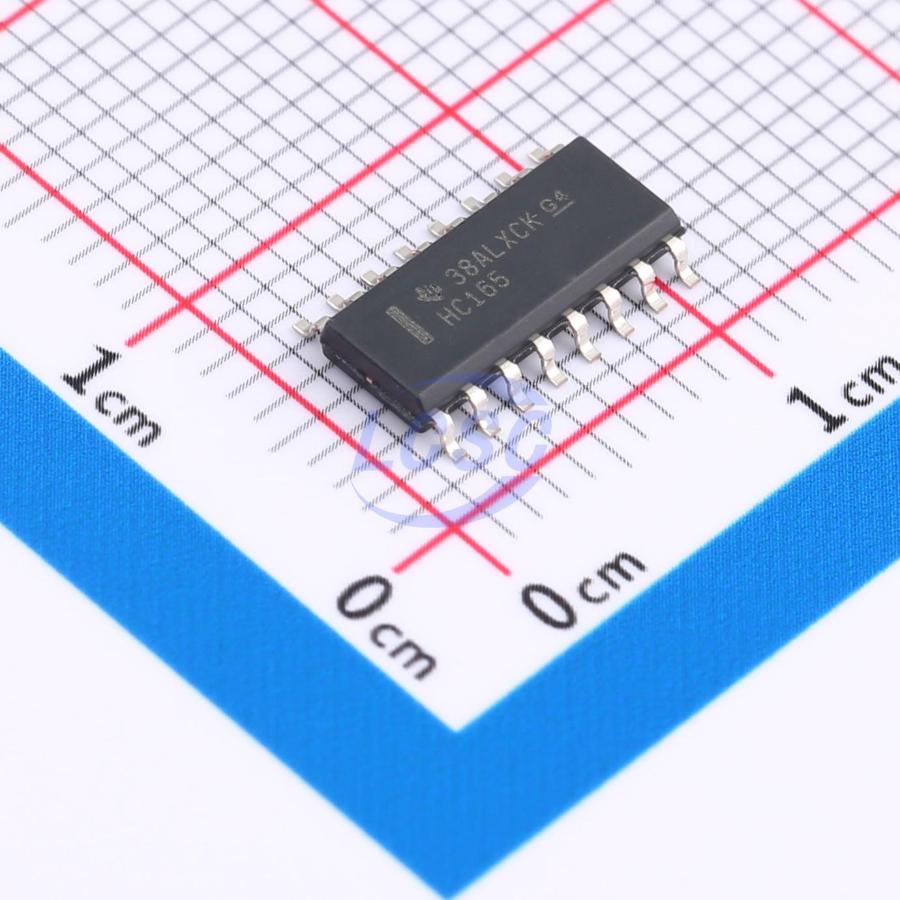

SN74HC165DR
2V~6V 1 4mA 13ns@6V,50pF Parallel or Serial to Serial SOP-16 Shift Registers RoHS
SOP-16ROHS3 CompliantActive
8-BIT PARALLEL-LOAD SHIFT REGISTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC165DR
- Store part #
- C61060
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,250 in stock
#C61060
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.59 | ₹177.95 |
| 50+ | ₹28.38 | ₹1,419.00 |
| 150+ | ₹24.86 | ₹3,729.00 |
| 500+ | ₹21.72 | ₹10,860.00 |
| 2,500+ | ₹20.86 | ₹52,150.00 |
| 5,000+ | ₹20.35 | ₹1,01,750.00 |
5 × ₹35.59
₹177.95
excl. GST
₹209.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC165DR
₹177.95 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Current - Output High(IOH)
- 4mA
- Series
- 74HC
- Current - Output Low(IOL)
- 4mA
- Number of Elements
- 1
- Output Current
- 4mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 13ns@6V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 80 μA Max ICC
- Typical propagation delay time (tpd) = 13 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Complementary Outputs
- Direct Overriding Load (Data) Inputs
- Gated Clock Inputs
- Parallel-to-Serial Data Conversion
