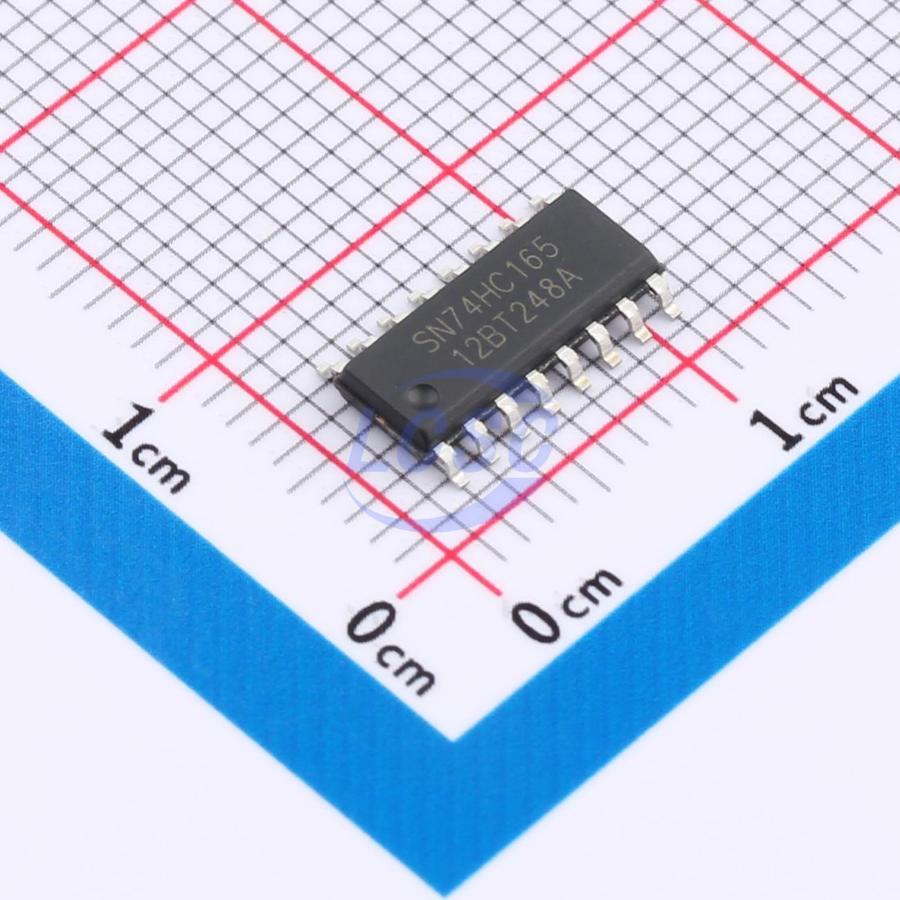

SN74HC165DR(LX)
2V~6V 1 25mA 19ns@4.5V,50pF Parallel or Serial to Serial SOP-16 Shift Registers
SOP-16RoHSActive
8-bit Parallel-in, Serial out Shift Register
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC165DR(LX)
- Store part #
- C22384789
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,995 in stock
#C22384789
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.09 | ₹45.45 |
| 50+ | ₹7.18 | ₹359.00 |
| 150+ | ₹6.23 | ₹934.50 |
| 500+ | ₹5.51 | ₹2,755.00 |
| 2,500+ | ₹4.94 | ₹12,350.00 |
| 4,000+ | ₹4.65 | ₹18,600.00 |
5 × ₹9.09
₹45.45
excl. GST
₹53.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC165DR(LX)
₹45.45 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 19ns@4.5V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
The SN74HC/HCT165 is 8-bit serial or parallel-in/serial-out shift registers. The device features a serial data input (DS), eight parallel data inputs (D0 to D7) and two complementary serial outputs (Q7 and Q7). When the parallel load input (PL) is LOW the data from D0 to D7 is loaded into the shift register asynchronously. When PL is HIGH data enters the register serially at DS. When the clock enable input ( CE) is LOW data is shifted on the LOW-to-HIGH transitions of the CP input. A HIGH on CE will disable the CP input. Inputs are overvoltage tolerant to 15V. This enables the device to be used in HIGH-to-LOW level shifting applications.
Key features
- Input levels: For SN74HC165: CMOS level For SN74HCT165: TTL level
- Asynchronous 8-bit parallel load
- Synchronous serial input
- Specified from -40℃ to +85℃
- Packaging information: DIP16/SOP16/TSSOP16
