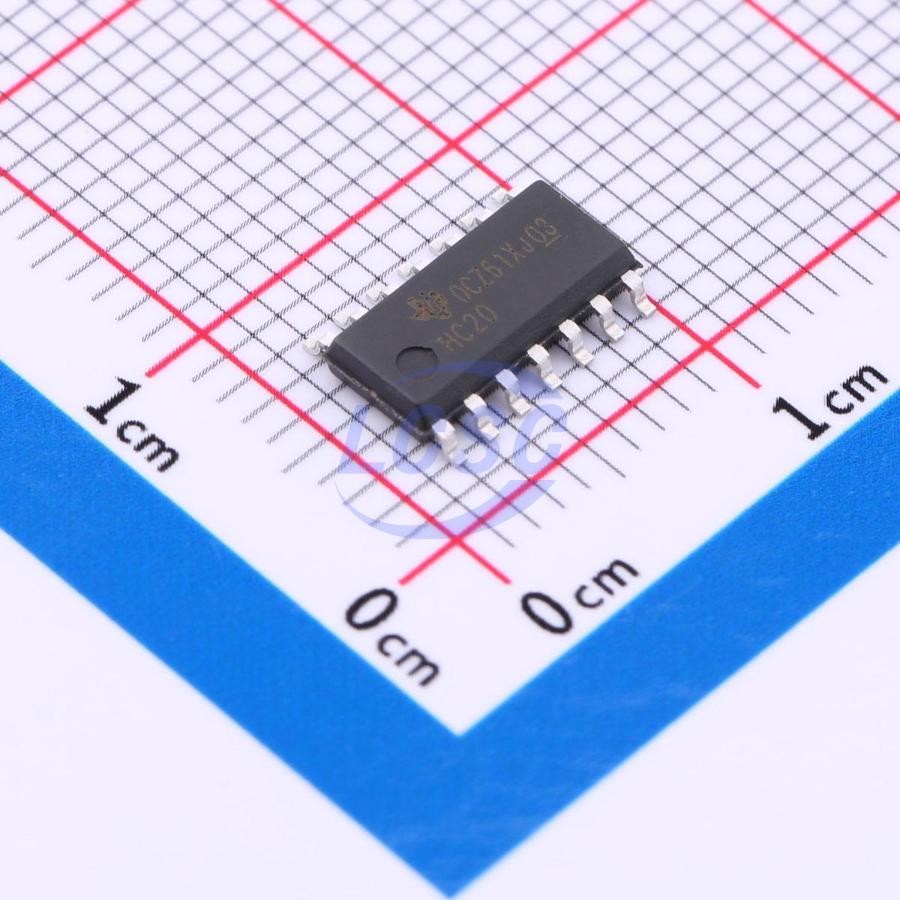

SN74HC20DR
NAND Gate IC 2 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
Dual 4-input NAND gates
- Manufacturer
- TI
- Manufacturer part #
- SN74HC20DR
- Store part #
- C2867684
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
595 in stock
#C2867684
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.26 | ₹206.30 |
| 50+ | ₹32.40 | ₹1,620.00 |
| 150+ | ₹28.06 | ₹4,209.00 |
| 500+ | ₹24.20 | ₹12,100.00 |
| 2,500+ | ₹23.14 | ₹57,850.00 |
| 5,000+ | ₹22.50 | ₹1,12,500.00 |
5 × ₹41.26
₹206.30
excl. GST
₹243.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC20DR
₹206.30 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 19ns@6V,50pF
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The device contains two independent 4-input NAND gates. Each gate implements the Boolean function Y = ¬(A · B · C · D) in positive logic.
Applications
- Alarm/tamper detection circuit
- S-R latch
Key features
- Buffered inputs
- Wide supply voltage range: 2V to 6V
- Wide operating temperature range: -40℃ to +85℃
- Fan-out supporting up to 10 LSTTL loads
- Significantly reduced power consumption compared to LSTTL logic ICs
Alternatives
Similar parts — check the datasheet before substituting.
