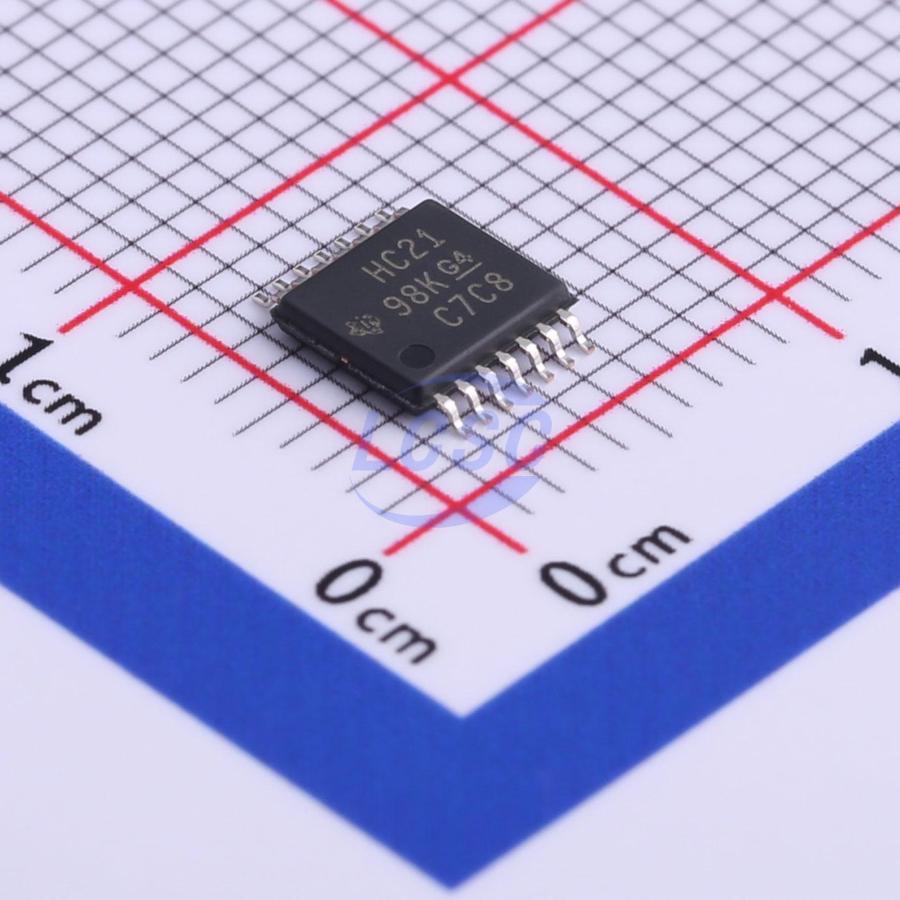

SN74HC21PWR
2uA 2V~6V 19ns@6V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
DUAL 4-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HC21PWR
- Store part #
- C507237
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
475 in stock
#C507237
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.05 | ₹67.05 |
| 10+ | ₹55.30 | ₹553.00 |
| 30+ | ₹50.08 | ₹1,502.40 |
| 100+ | ₹43.76 | ₹4,376.00 |
| 500+ | ₹40.93 | ₹20,465.00 |
| 1,000+ | ₹33.75 | ₹33,750.00 |
1 × ₹67.05
₹67.05
excl. GST
₹79.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC21PWR
₹67.05 for 1 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 5.2mA
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 19ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.089 g
Overview
These devices contain two independent 4-input AND gates. They perform the Boolean function Y = A • B • C • D or Y = A + B + C + D in positive logic.
Key features
- Wide Operating Voltage Range of δ₂V₀ to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 - μA Max ICC
- Typical pd = 11 ns
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC21QPWRG4Q1#C2864275TI · TSSOP-14 | TI | TSSOP-14 | 7 | ₹93.67 · 7 in stock | View |
 | SN74HCS21QPWRQ1#C2860362TI · TSSOP-14 | TI | TSSOP-14 | 250 | ₹113.65 · 250 in stock | View |
 | SN74HCS21PWR#C2866212TI · TSSOP-14 | TI | TSSOP-14 | 165 | ₹54.04 · 165 in stock | View |
 | EM74HC21PW#C49188234EnergyMath · TSSOP-14L | EnergyMath | TSSOP-14L | 470 | ₹17.50 · 470 in stock | View |
 | 74VHC21FT#C4470883TOSHIBA · TSSOP-14-175mil | TOSHIBA | TSSOP-14-175mil | 4,385 | ₹31.73 · 4,385 in stock | View |
