lingxingic

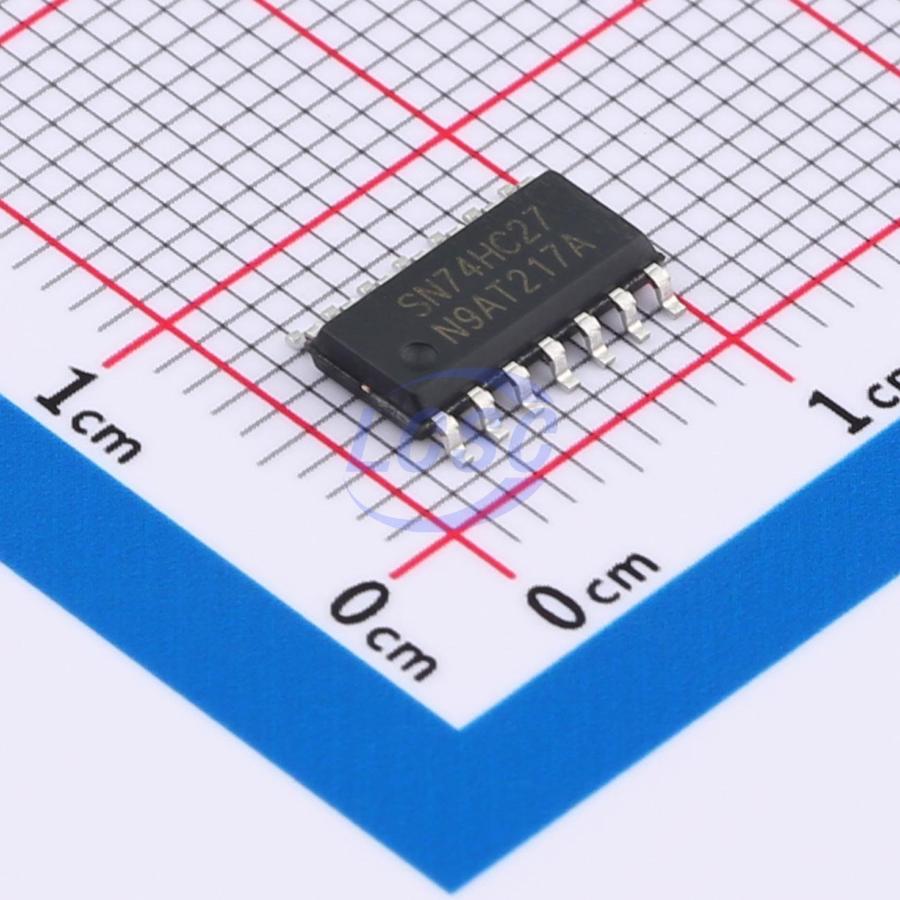

SN74HC27DR(LX)

StandardCMOS 2V~6V 15ns@6V,50pF 2uA SOP-14 Gates and Inverters

SOP-14RoHSActive

Triple 3-input Nor Gate

Manufacturer: lingxingic
Manufacturer part #: SN74HC27DR(LX)
Store part #: C24833612
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,485 in stock

#C24833612

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.36	₹101.80
50+	₹15.98	₹799.00
150+	₹14.12	₹2,118.00
500+	₹11.77	₹5,885.00
2,500+	₹10.74	₹26,850.00
4,000+	₹10.11	₹40,440.00

Quantity (min 5, multiples of 5)

5 × ₹20.36

₹101.80

excl. GST

₹120.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC27DR(LX)

₹101.80 for 5 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74HC Series
Voltage - Supply: 2V~6V
Output Logic Level - Low: 100mV;260mV
Propagation Delay: 15ns@6V,50pF
Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;3.98V;5.48V
Quiescent Current(Iq): 2uA
Number of Channels: 3;3
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.259 g

Overview

The SN74HC/HCT27 is a triple 3-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Input levels: For SN74HC27: CMOS level For SN74HCT27: TTL level Specified from -40 °C to +125 °C Packaging information: DIP14/SOP14/TSSOP14
