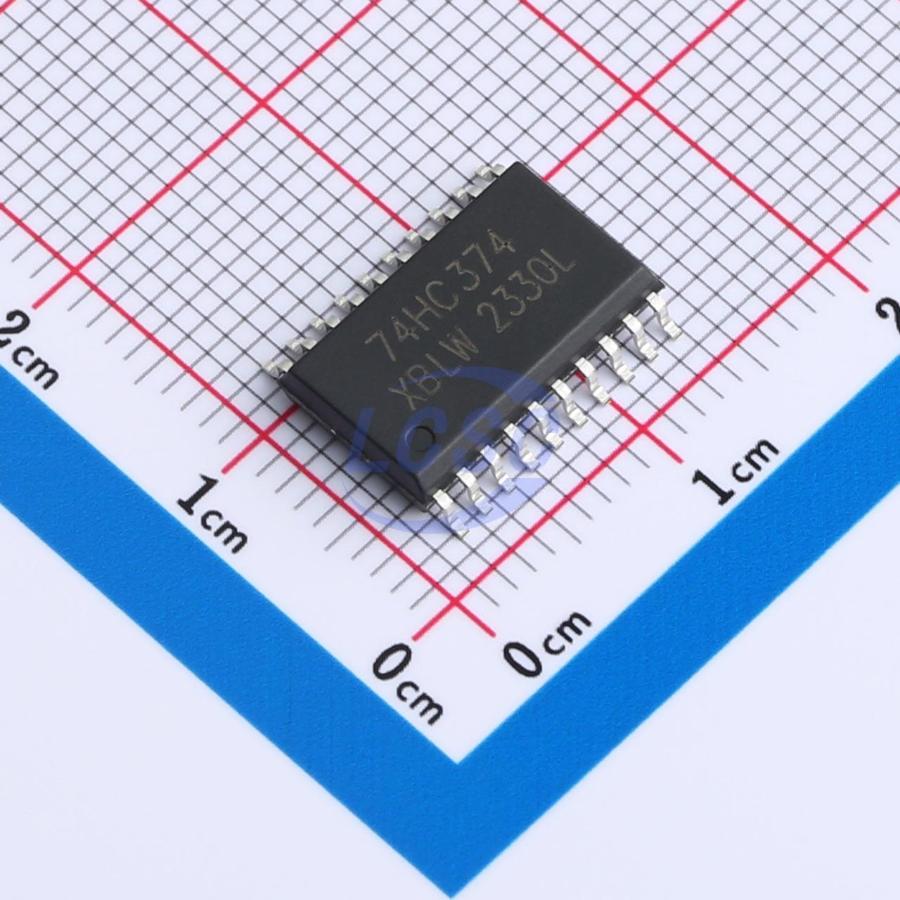

SN74HC374DTR(XBLW)
2V~6V 1 35mA 14ns@6V,50pF Serial-to-Parallel SOP-20 Shift Registers RoHS
SOP-20ROHS CompliantActive
Octal D-type flip-flop; positive edge-trigger; 3-state
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC374DTR(XBLW)
- Store part #
- C18723525
- Package / case
- SOP-20
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C18723525
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.62 | ₹138.10 |
| 50+ | ₹21.55 | ₹1,077.50 |
| 150+ | ₹18.95 | ₹2,842.50 |
| 500+ | ₹15.69 | ₹7,845.00 |
| 2,000+ | ₹14.25 | ₹28,500.00 |
| 4,000+ | ₹13.39 | ₹53,560.00 |
5 × ₹27.62
₹138.10
excl. GST
₹162.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC374DTR(XBLW)
₹138.10 for 5 + GST
Specifications
- Operating temperature
- -40℃~+105℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Current - Output Low(IOL)
- 6mA
- Number of Elements
- 1
- Output Current
- 35mA
- Features
- Output enable
- Propagation Delay
- 14ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.768 g
Overview
The SN74HC374 is a octal positive-edge triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Octal bus interface
- Non-inverting 3-state outputs
- 8-bit positive, edge-triggered register
- Common 3-state output enable input
- Independent register and 3-state buffer operation
- Specified from -40°C to +125°C
