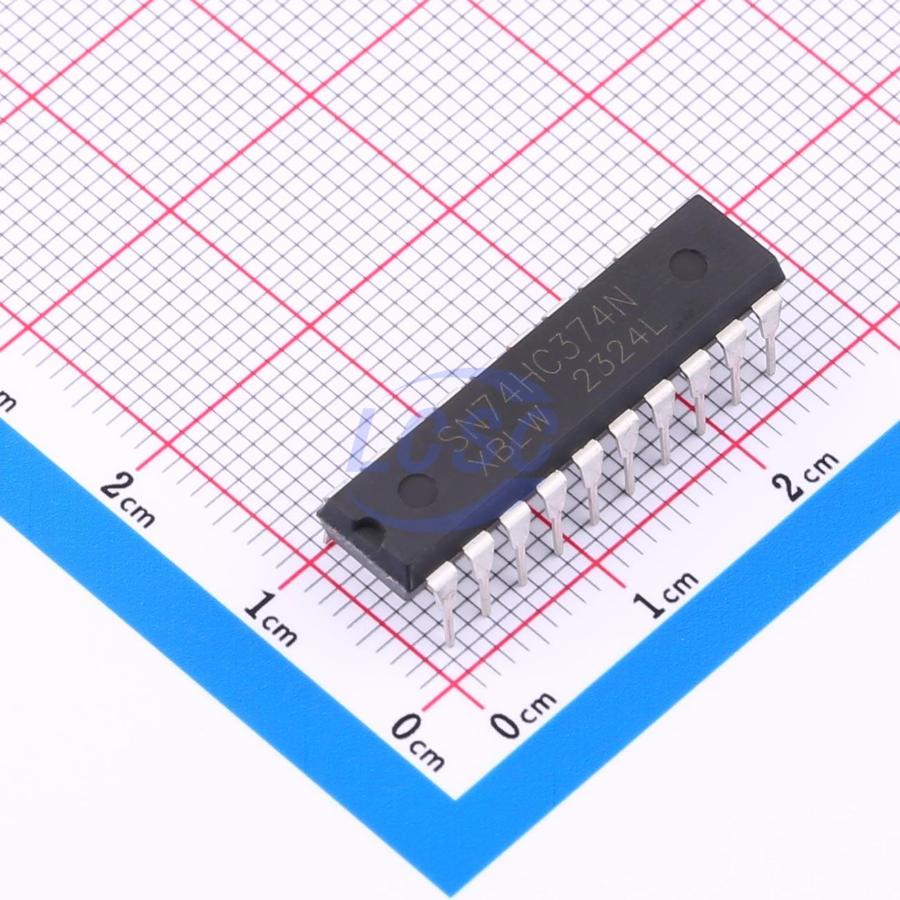

SN74HC374N(XBLW)
2V~6V 1 35mA 14ns@6V,50pF Serial-to-Parallel DIP-20 Shift Registers RoHS
DIP-20ROHS CompliantActive
Octal D-type flip-flop; positive edge-trigger; 3-state
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC374N(XBLW)
- Store part #
- C18723526
- Package / case
- DIP-20
- Category
- Shift Registers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,672 in stock
#C18723526
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 6+ | ₹33.08 | ₹198.48 |
| 60+ | ₹25.81 | ₹1,548.60 |
| 180+ | ₹22.70 | ₹4,086.00 |
| 594+ | ₹18.81 | ₹11,173.14 |
| 2,880+ | ₹17.08 | ₹49,190.40 |
| 5,760+ | ₹16.05 | ₹92,448.00 |
6 × ₹33.08
₹198.48
excl. GST
₹234.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 18 per tube
SN74HC374N(XBLW)
₹198.48 for 6 + GST
Specifications
- Operating temperature
- -40℃~+105℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 35mA
- Features
- Output enable
- Propagation Delay
- 14ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 18 / Tube
- Sold per
- Piece
- Minimum order
- 6 (multiples of 6)
- Unit weight
- 2.238 g
Overview
The SN74HC374 is a octal positive-edge triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Octal bus interface
- Non-inverting 3-state outputs
- 8-bit positive, edge-triggered register
- Common 3-state output enable input
- Independent register and 3-state buffer operation
- Specified from -40°C to +125°C
