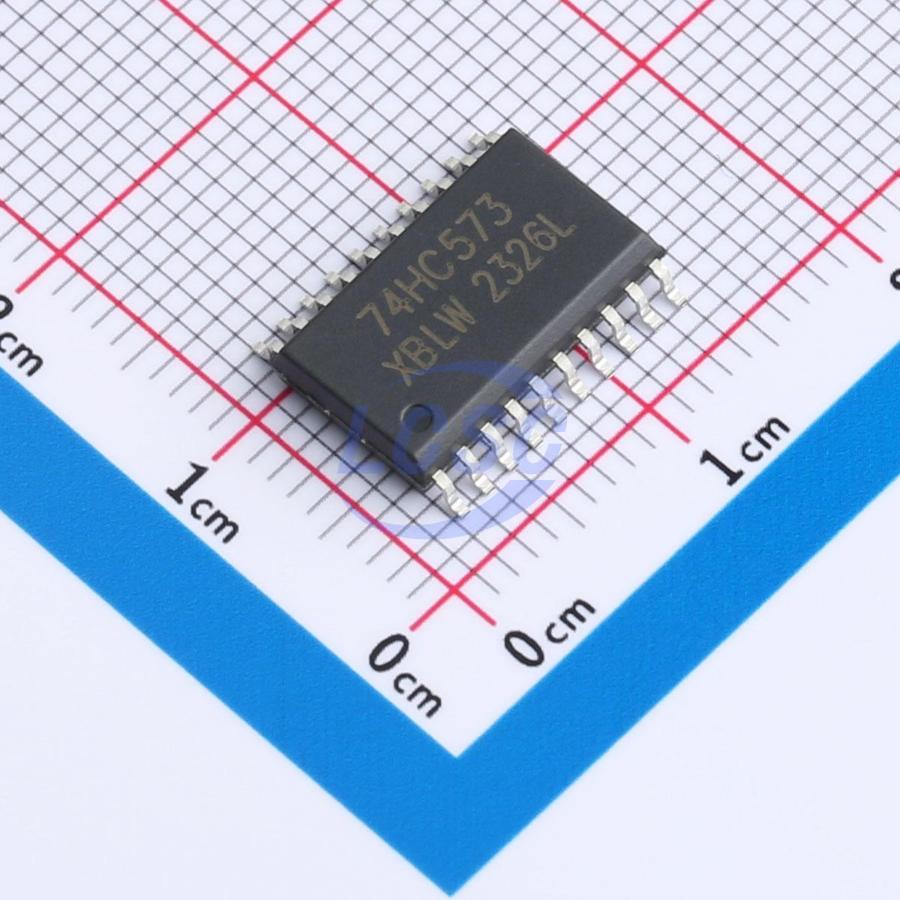

SN74HC573DTR(XBLW)
D Latch 2V~6V 8 14ns SOP-20 Latches RoHS
Octal D-type transparent latch; 3-state
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,795 in stock
#C18723527
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.56 | ₹142.80 |
| 50+ | ₹22.39 | ₹1,119.50 |
| 150+ | ₹19.74 | ₹2,961.00 |
| 500+ | ₹16.44 | ₹8,220.00 |
| 2,000+ | ₹14.98 | ₹29,960.00 |
| 4,000+ | ₹14.09 | ₹56,360.00 |
5 × ₹28.56
₹142.80
excl. GST
₹168.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC573DTR(XBLW)
₹142.80 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Tri-State
- Setup Time
- 3ns
- Current - Output High(IOH)
- 7.8mA
- Number of Gates
- 8
- Hold Time
- 1ns
- Propagation Delay
- 14ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.774 g
Overview
The SN74HC573 is an 8-bit D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is high, input data enters the latches; in this state the latches are transparent, and the outputs change with each corresponding D input change. When LE is low, the latches store the information present at the inputs one setup time before the LE high-to-low transition. A high on the OE input forces the outputs into a high-impedance off state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes, which allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Inputs and outputs on opposite sides of package for easy microprocessor interfacing
- Usable as input or output ports for microprocessors and microcomputers
- Three-state non-inverting outputs for bus applications
- Common three-state output enable input
- Operating temperature range: -40℃ ~ +125℃
- Package options: DIP-20, SOP-20, TSSOP-20, SOIC-20-208mil
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC373DTR(XBLW)#C18723523XBLW · SOP-20 | XBLW | SOP-20 | 2,070 | ₹27.77 · 2,070 in stock | View |
 | SN74LS573DTR(XBLW)#C54525287XBLW · SOP-20 | XBLW | SOP-20 | 468 | ₹61.44 · 468 in stock | View |
 | SN74LS373DTR(XBLW)#C54525286XBLW · SOP-20 | XBLW | SOP-20 | 2,591 | ₹57.68 · 2,591 in stock | View |
