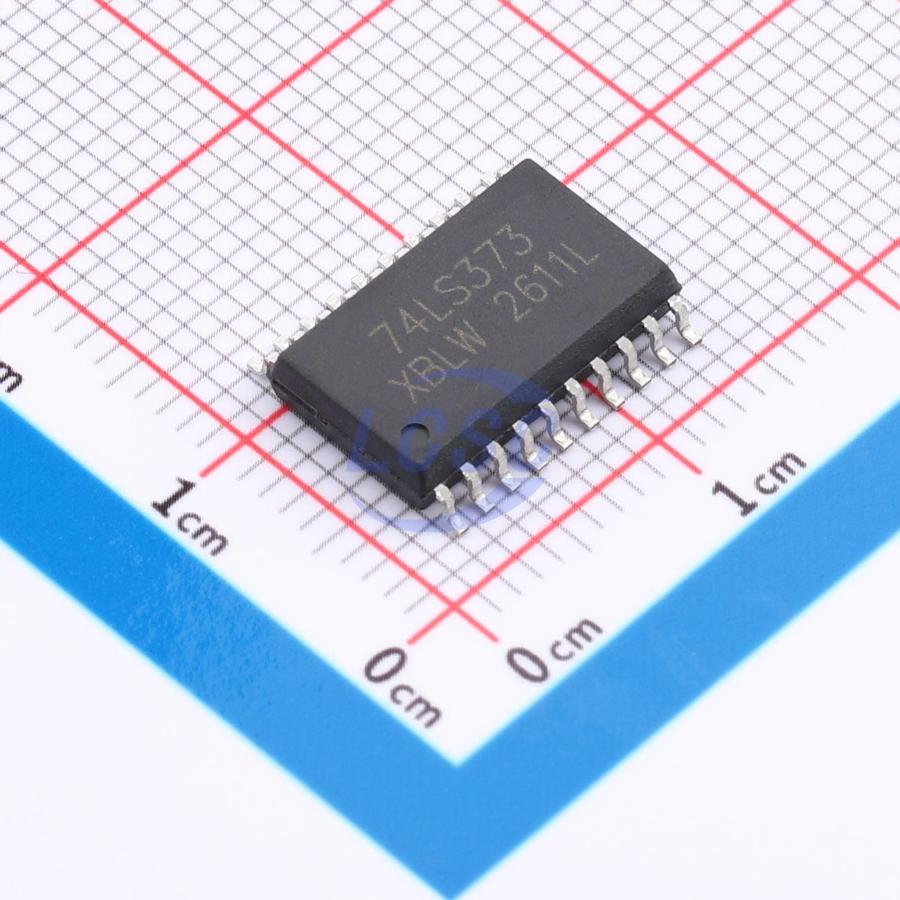

SN74LS373DTR(XBLW)
D Latch 2V~6V 8 12ns SOP-20 Latches RoHS
Octal D-type transparent latch, tri-state output function
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,591 in stock
#C54525286
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.68 | ₹57.68 |
| 10+ | ₹45.54 | ₹455.40 |
| 30+ | ₹40.55 | ₹1,216.50 |
| 100+ | ₹34.04 | ₹3,404.00 |
| 500+ | ₹31.22 | ₹15,610.00 |
| 1,000+ | ₹29.49 | ₹29,490.00 |
1 × ₹57.68
₹57.68
excl. GST
₹68.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LS373DTR(XBLW)
₹57.68 for 1 + GST
Specifications
- Series
- 74LS
- Logic Type
- D Latch
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Output Type
- Tri-State
- Operating Temperature
- -20℃~+85℃
- Number of Gates
- 8
- Current - Output High(IOH)
- 7.8mA
- Propagation Delay
- 12ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.05 g
Overview
The SN74LS373 is an octal D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, input data enters the latches. Under this condition, the latches are transparent and their outputs follow the corresponding D inputs. When LE is LOW, the latches store the information that was present at the inputs before the setup time of the HIGH-to-LOW transition of LE. A HIGH on the OE input forces the outputs into a high-impedance off-state. Operation of the OE input does not affect the state of the latches. The inputs include clamp diodes, which enable the use of current-limiting resistors to interface inputs to voltages higher than VCC.
Key features
- Three-state non-inverting outputs for bus applications
- Common three-state output enable input
- Operating temperature range: -20°C ~ +85°C
- Package options: DIP-20, SOP-20, TSSOP-20, SOIC-20-208mil
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS573DTR(XBLW)#C54525287XBLW · SOP-20 | XBLW | SOP-20 | 468 | ₹61.44 · 468 in stock | View |
 | SN74HC373DTR(XBLW)#C18723523XBLW · SOP-20 | XBLW | SOP-20 | 2,070 | ₹27.77 · 2,070 in stock | View |
 | SN74HC573DTR(XBLW)#C18723527XBLW · SOP-20 | XBLW | SOP-20 | 2,795 | ₹28.56 · 2,795 in stock | View |
