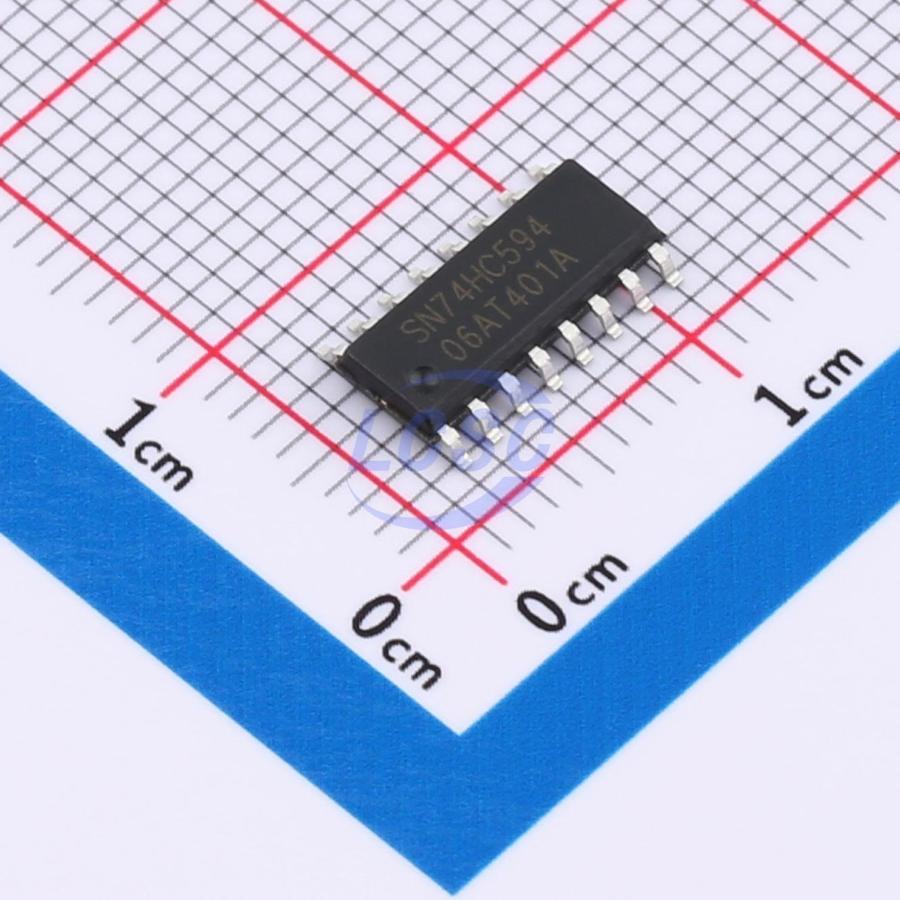

SN74HC594D(LX)
2V~6V 1 25mA 14ns@6V,50pF Serial-to-Parallel SOP-16 Shift Registers
SOP-16RoHSActive
8-bit Shift Register with Output Register
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC594D(LX)
- Store part #
- C22374078
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C22374078
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.34 | ₹96.70 |
| 50+ | ₹16.90 | ₹845.00 |
| 150+ | ₹15.84 | ₹2,376.00 |
| 500+ | ₹14.53 | ₹7,265.00 |
| 2,500+ | ₹13.95 | ₹34,875.00 |
| 4,000+ | ₹13.60 | ₹54,400.00 |
5 × ₹19.34
₹96.70
excl. GST
₹114.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC594D(LX)
₹96.70 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Features
- Asynchronous clear function
- Propagation Delay
- 14ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.276 g
Overview
The 74HC594/74HCT594 is an 8-bit serial-in/serial or parallel-out shift register with a storage register.
Key features
- Supply voltage range:
- SN74HC594: 2~6V
- 74HCT594: 4.5~5.5V
- Input levels:
- SN74HC594: CMOS level
- 74HCT594: TTL level
- Temperature range: -40℃ to +125℃
- Packaging information: DIP16/SOP16/TSSOP16
