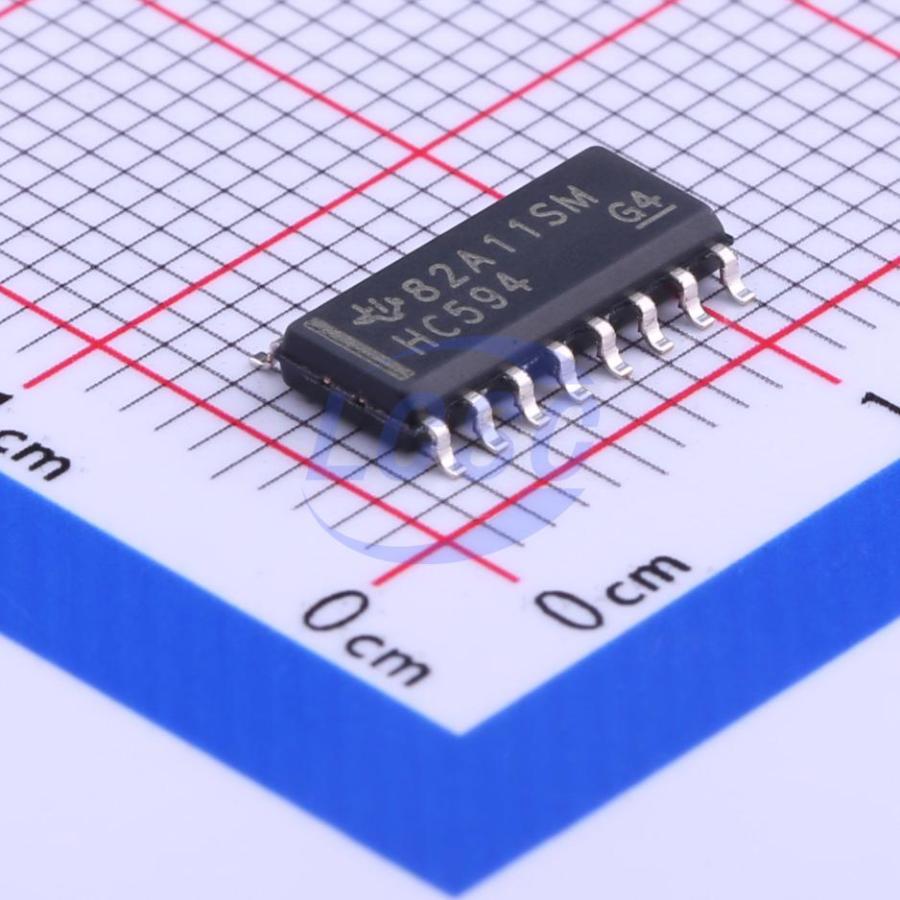

SN74HC594DR
2V~6V 1 50mA 25ns@6V,50pF Serial-to-Parallel SOIC-16 Shift Registers RoHS
SOIC-16ROHS3 CompliantActive
8-Bit Shift Registers With Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74HC594DR
- Store part #
- C91727
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,870 in stock
#C91727
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.33 | ₹246.65 |
| 50+ | ₹38.82 | ₹1,941.00 |
| 150+ | ₹34.31 | ₹5,146.50 |
| 500+ | ₹28.68 | ₹14,340.00 |
| 2,500+ | ₹26.17 | ₹65,425.00 |
| 5,000+ | ₹24.67 | ₹1,23,350.00 |
5 × ₹49.33
₹246.65
excl. GST
₹291.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC594DR
₹246.65 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Current - Output Low(IOL)
- 6mA
- Number of Elements
- 1
- Output Current
- 50mA
- Features
- Asynchronous clear function
- Propagation Delay
- 25ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
The SNx4HC594 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks and direct overriding clear (RCLR, SRCLR) inputs are provided on both the shift and storage registers. A serial (QH') output is provided for cascading purposes. Both the shift register (SRCLK) and storage register (RCLK) clocks are positive edge triggered. If both clocks are connected together, the shift register always is one count pulse ahead of the storage register. The parallel (QA - QH) outputs have high-current capability. QH' is a standard output.
Applications
- Pro Audio Mixer
- Elevators and Escalators
- Human Machine Interface (HMI): Industrial Monitor
- Entertainment Systems
- Grid Infrastructure: Grid Control
- Access Control and Security: DVR and DVS
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current Outputs Can Drive up to 15 LSTTL Loads
- Low Power Consumption, 80 μA Maximum ICC
- Typical tpd = 15 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Maximum
- 8-Bit Serial-In, Parallel-Out Shift Registers With Storage
- Independent Direct Overriding Clears on Shift and Storage Registers
- Independent Clocks for Both Shift and Storage Registers
