TIDatasheet (PDF)

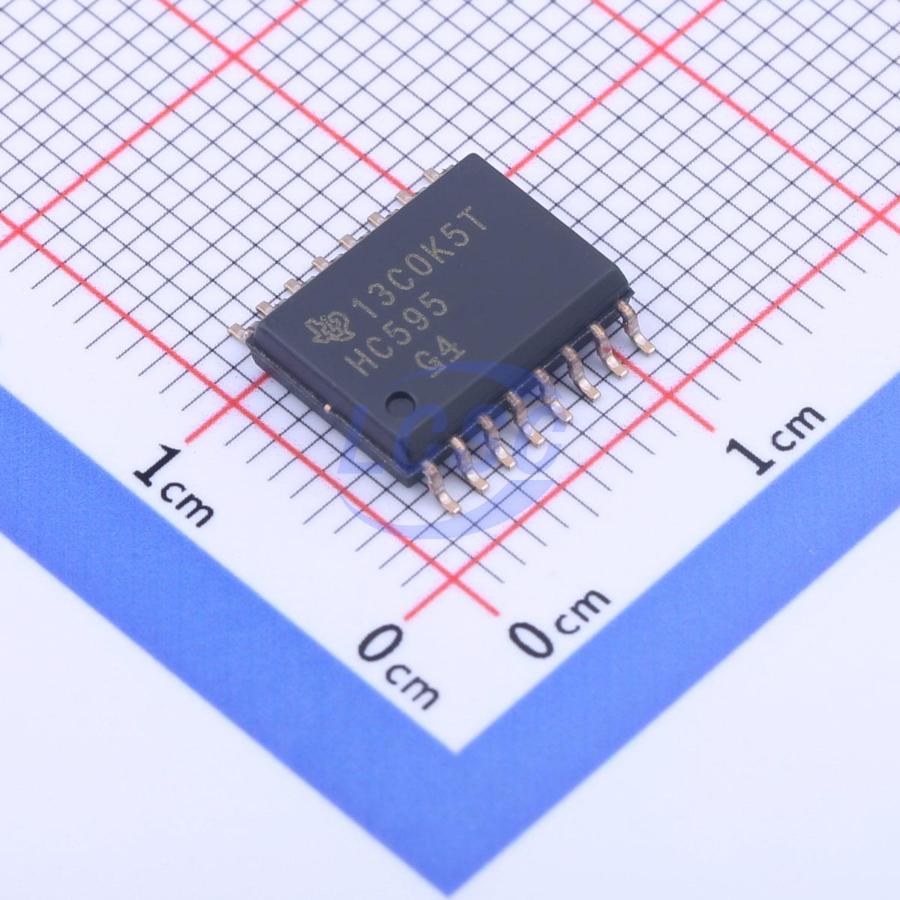

SN74HC595DWR
2V~6V 1 26ns@6V,50pF Serial-to-Serial or Parallel SOIC-16-300mil Shift Registers RoHS
SOIC-16-300milROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- SN74HC595DWR
- Store part #
- C2864237
- Package / case
- SOIC-16-300mil
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,657 in stock
#C2864237
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.56 | ₹66.56 |
| 10+ | ₹56.12 | ₹561.20 |
| 30+ | ₹48.94 | ₹1,468.20 |
| 100+ | ₹43.08 | ₹4,308.00 |
| 500+ | ₹41.12 | ₹20,560.00 |
| 1,000+ | ₹40.02 | ₹40,020.00 |
1 × ₹66.56
₹66.56
excl. GST
₹78.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC595DWR
₹66.56 for 1 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Current - Output Low(IOL)
- 6mA
- Number of Elements
- 1
- Propagation Delay
- 26ns@6V,50pF
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
8-bit serial-in/parallel-out shift register; wide operating voltage range 2V to 6V; high-current three-state outputs drive up to 15 LSTTL loads; low power: 80 μA (max) ICC; Δtₚd = 13 ns (typical); ±6mA output drive at 5V; low input current: 1μA (max); shift register with direct clear.
Applications
- Network switches
- Power infrastructure
- LED displays
- Servers
Key features
- 8-bit serial-in/parallel-out shift register
- Wide operating voltage range: 2V to 6V
- High-current tri-state outputs drive up to 15 LSTTL loads
- Low power: 80 μA (max) ICC
- Δtₚd = 13 ns (typical)
- Output drive ±6mA at 5V
- Low input current: 1μA (max)
- Direct clear function on shift register
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD74HC595DWR#C2871241TI · SOIC-16-300mil | TI | SOIC-16-300mil | 12 | ₹214.47 · 12 in stock | View |
 | 74HC595D#C5144558JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 3,27,830 | ₹10.62 · 3,27,830 in stock | View |
