TIDatasheet (PDF)

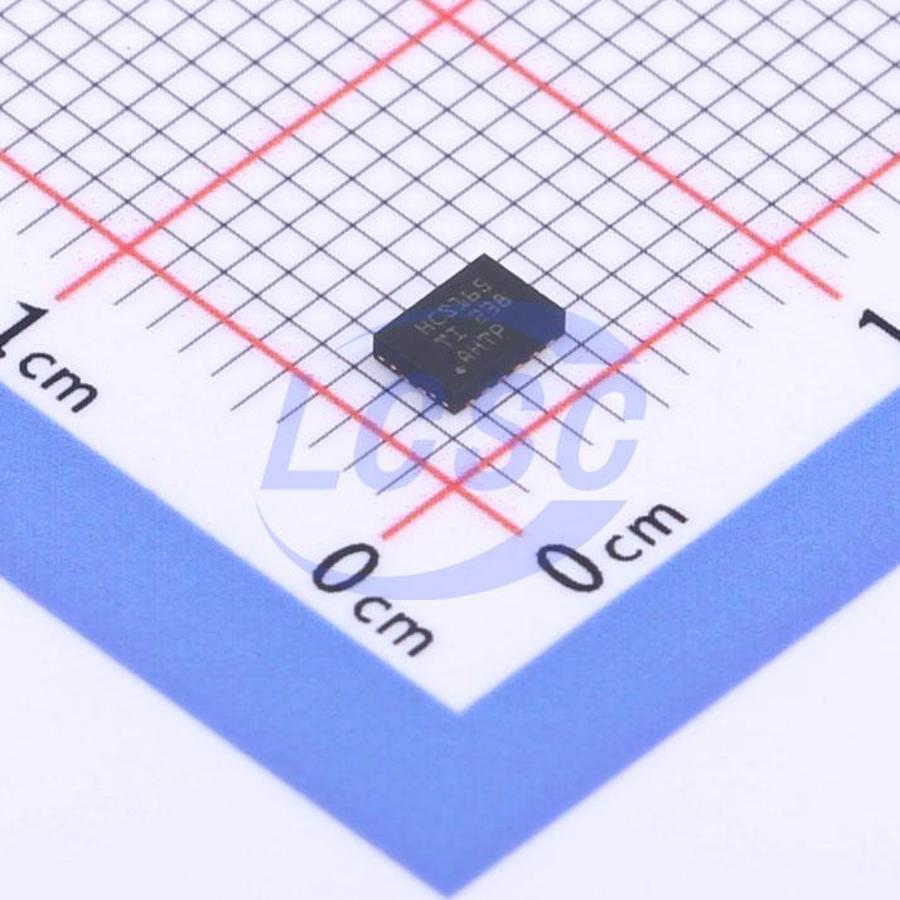

SN74HCS165BQBR
2V~6V 7.8mA 14ns@6V,50pF Parallel-to-Serial QFN-16-EP(2.5x3.5) Shift Registers RoHS
QFN-16-EP(2.5x3.5)ROHS3 CompliantActive
8-bit parallel load shift register
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS165BQBR
- Store part #
- C2866439
- Package / case
- QFN-16-EP(2.5x3.5)
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,641 in stock
#C2866439
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.67 | ₹57.67 |
| 10+ | ₹46.44 | ₹464.40 |
| 30+ | ₹41.04 | ₹1,231.20 |
| 100+ | ₹36.29 | ₹3,629.00 |
| 500+ | ₹34.99 | ₹17,495.00 |
| 1,000+ | ₹34.13 | ₹34,130.00 |
1 × ₹57.67
₹57.67
excl. GST
₹68.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74HCS165BQBR
₹57.67 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Series
- 74HCS
- Current - Output High(IOH)
- 7.8mA
- Current - Output Low(IOL)
- 7.8mA
- Output Current
- 7.8mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 14ns@6V,50pF
- Function
- Parallel-to-Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
Wide operating voltage range: 2V to 6V SN74HCS165 is an 8-bit parallel-in or serial-in/serial-out shift register with Schmitt-trigger inputs. Schmitt-trigger inputs for slow or high-noise input signals Low power consumption – ICC typical value 100nA – Input leakage current typical value ±100nA Output drive ±7.8mA at 6V Operating ambient temperature range: -40℃ to +125℃, TA
Applications
- Increase the number of inputs on the microcontroller
Key features
- Wide operating voltage range: 2V to 6V
- Schmitt-trigger inputs for slow or high-noise input signals
- Low power consumption – typical ICC of 100nA
- Typical input leakage current ±100nA
- Output drive ±7.8mA at 6V
- Operating ambient temperature range: -40℃ to +125℃, TA
