SN74HCS20PWR
Schmitt trigger 2V~6V 19ns@6V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive

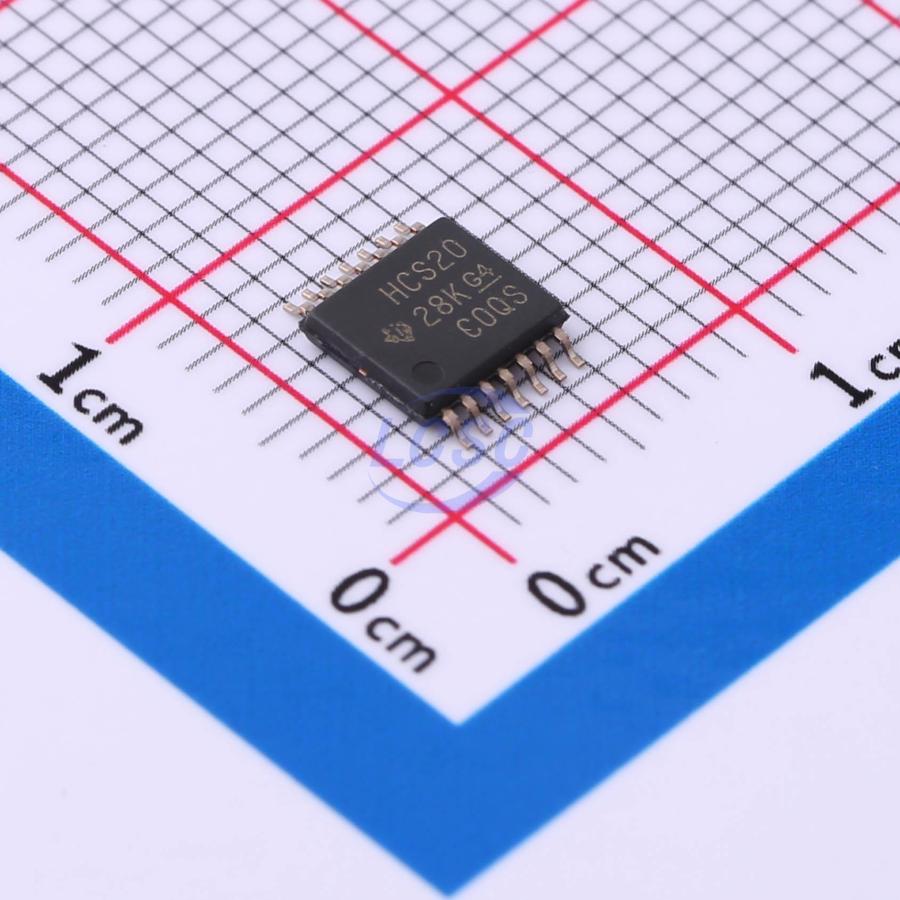

Dual 4-Input NAND Gate with Schmitt-Trigger Inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS20PWR
- Store part #
- C2871528
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,845 in stock
#C2871528
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.28 | ₹206.40 |
| 50+ | ₹33.05 | ₹1,652.50 |
| 150+ | ₹29.53 | ₹4,429.50 |
| 500+ | ₹25.12 | ₹12,560.00 |
| 2,000+ | ₹23.17 | ₹46,340.00 |
| 4,000+ | ₹21.99 | ₹87,960.00 |
5 × ₹41.28
₹206.40
excl. GST
₹243.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCS20PWR
₹206.40 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HCS Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 180mV~300mV;220mV~330mV
- Propagation Delay
- 19ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 1V~3V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4V~4.3V;5.4V~5.75V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 7.8mA
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.31 g
Overview
This device contains two independent 4-input NAND gates with Schmitt-trigger inputs. Each gate performs the Boolean function Y = (A • B • C • D) (overline) in positive logic.
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Wide operating voltage range: 2 V to 6 V
- Schmitt-trigger inputs allow for slow or noisy input signals
- Low power consumption Typical ICC of 100 nA Typical input leakage current of ±100 nA
- ±7.8 mA output drive at 5 V
- Extended ambient temperature range: -40 ℃ to +125 ℃ , TA
