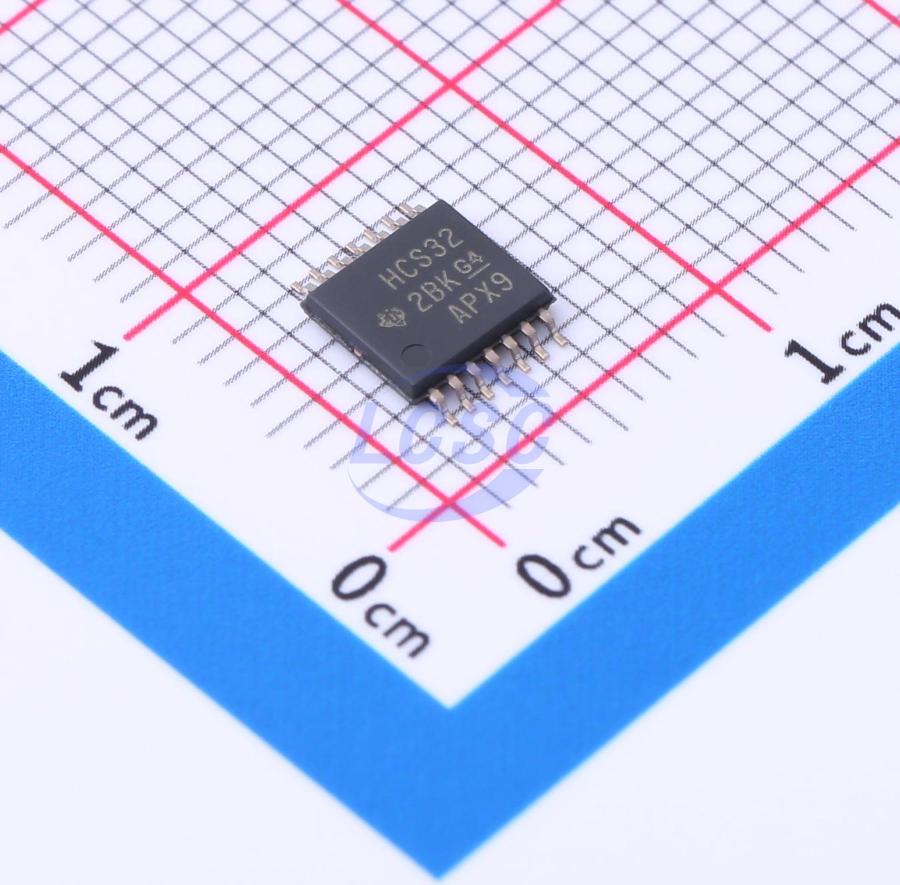

SN74HCS32PWR
OR Gate IC 4 Channel Schmitt Trigger input TSSOP-14
TSSOP-14ROHS3 CompliantActive
Quad 2-input OR gates with Schmitt-trigger inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS32PWR
- Store part #
- C5211450
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C5211450
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.26 | ₹211.30 |
| 50+ | ₹33.86 | ₹1,693.00 |
| 150+ | ₹29.75 | ₹4,462.50 |
| 500+ | ₹26.10 | ₹13,050.00 |
| 2,000+ | ₹25.10 | ₹50,200.00 |
| 4,000+ | ₹24.50 | ₹98,000.00 |
5 × ₹42.26
₹211.30
excl. GST
₹249.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCS32PWR
₹211.30 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HCS Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 220mV~330mV
- Propagation Delay
- 12ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 1V~3V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5.4V~5.75V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 7.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
This device contains four independent dual-input OR gates with Schmitt-trigger inputs. Each logic gate performs the Boolean function Y = A + B in positive logic.
Applications
- Monitor error signals with fewer inputs
- Combine active-low enable signals
Key features
- Wide operating voltage range: 2V to 6V
- Schmitt-trigger inputs for slow or noisy input signals
- Low power consumption
- ICC typical: 100nA
- Input leakage current typical: ±100nA
- Output drive: ±7.8mA at 6V
- Operating temperature range: -40℃ to +125℃, TA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74HCS32QPWRQ1#C2872372TI · TSSOP-14 | TI | TSSOP-14 | On request | ₹150.81 · 0 in stock | View | |
 | SN74AHC32PWR#C132989TI · TSSOP-14 | TI | TSSOP-14 | 4,215 | ₹45.50 · 4,215 in stock | View |
| 74AHC32PW-Q100J#C554386Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 4,555 | ₹39.05 · 4,555 in stock | View | |
 | SN74AHC32QPWRQ1#C2868909TI · TSSOP-14 | TI | TSSOP-14 | 16 | ₹52.80 · 16 in stock | View |
 | 74HC32T14-13#C842435DIODES · TSSOP-14 | DIODES | TSSOP-14 | 335 | ₹21.83 · 335 in stock | View |
