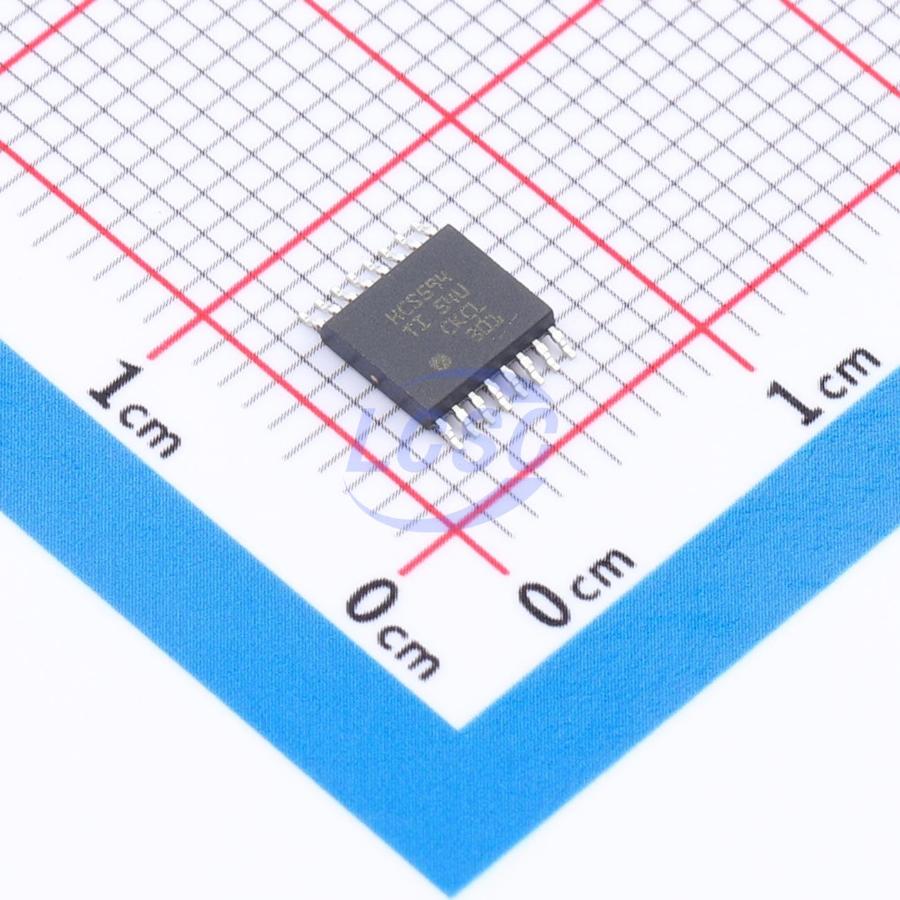

SN74HCS594PWR
2V~6V 1 7.8mA 9ns@6V,50pF Serial-to-Parallel TSSOP-16 Shift Registers RoHS
TSSOP-16ROHS3 CompliantActive
8-bit shift register with Schmidt-trigger inputs and output registers, SN74HCS594
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS594PWR
- Store part #
- C2877063
- Package / case
- TSSOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,873 in stock
#C2877063
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.11 | ₹69.11 |
| 10+ | ₹59.39 | ₹593.90 |
| 30+ | ₹52.48 | ₹1,574.40 |
| 100+ | ₹46.87 | ₹4,687.00 |
| 500+ | ₹45.14 | ₹22,570.00 |
| 1,000+ | ₹44.06 | ₹44,060.00 |
1 × ₹69.11
₹69.11
excl. GST
₹81.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCS594PWR
₹69.11 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HCS
- Current - Output Low(IOL)
- 7.8mA
- Number of Elements
- 1
- Output Current
- 7.8mA
- Features
- Asynchronous clear function
- Propagation Delay
- 9ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.262 g
Overview
The SN74HCS594 device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. All inputs incorporate Schmitt-trigger architecture, eliminating any erroneous data output caused by slowly changing edges or noisy input signals. The storage register has parallel outputs. The shift register and storage register have separate clocks and direct overriding clear (SRCLR, RCLR) inputs, as well as a serial output (QH') for cascading configurations. Both the shift register (SRCLK) and storage register (RCLK) clocks are positive-edge triggered. If the two clocks are connected together, the shift register advances one pulse ahead of the storage register.
Applications
- Output expansion
- LED matrix control
- 7-segment display control
- 8-bit data storage
Key features
- Wide supply voltage range: 2V to 6V
- Schmitt-trigger inputs for slow or noisy input signals
- Low power consumption
- ICC typical: 100nA
- Input leakage current typical: ±100nA
- Output drive: ±7.8mA at 6V
- Operating ambient temperature range: -40℃ to +125℃, TA
Alternatives
Similar parts — check the datasheet before substituting.
