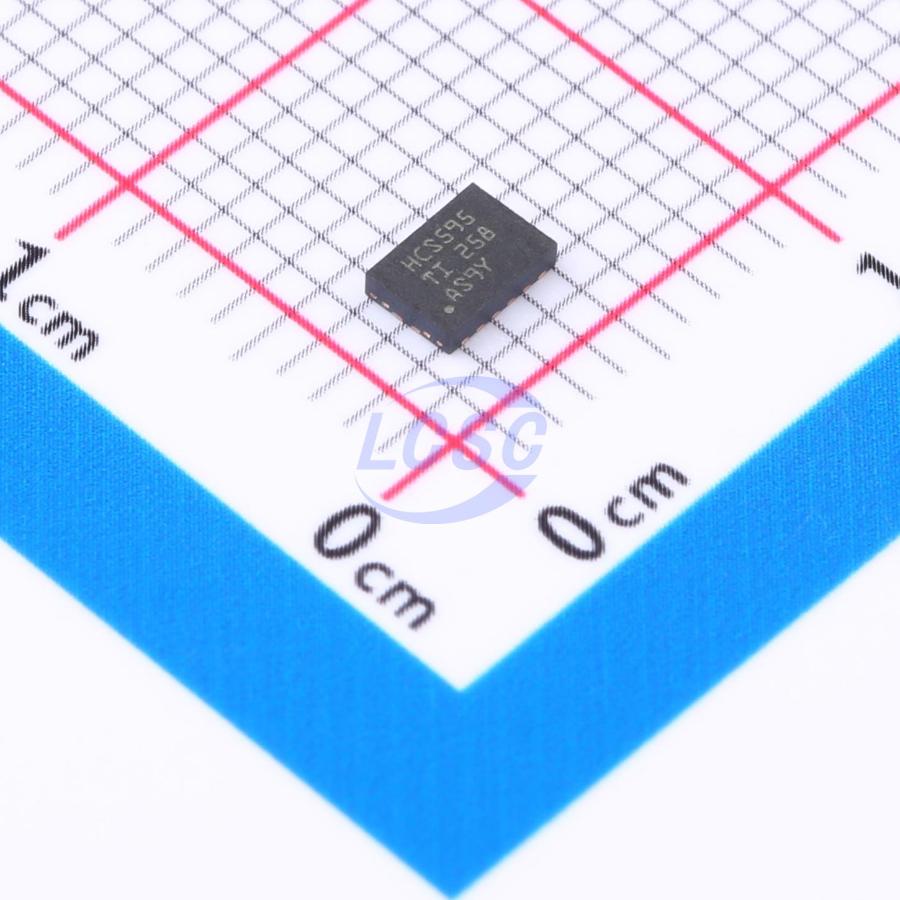

SN74HCS595BQBR
2V~6V 1 7.8mA 8ns@6V,50pF Serial-to-Parallel WQFN-16(2.5x3.5) Shift Registers RoHS
WQFN-16(2.5x3.5)ROHS3 CompliantActive
8-bit shift register with Schmitt-trigger inputs and three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS595BQBR
- Store part #
- C2876392
- Package / case
- WQFN-16(2.5x3.5)
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C2876392
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.63 | ₹59.63 |
| 10+ | ₹47.27 | ₹472.70 |
| 30+ | ₹41.20 | ₹1,236.00 |
| 100+ | ₹35.79 | ₹3,579.00 |
| 500+ | ₹34.27 | ₹17,135.00 |
| 1,000+ | ₹33.39 | ₹33,390.00 |
1 × ₹59.63
₹59.63
excl. GST
₹70.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74HCS595BQBR
₹59.63 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HCS
- Current - Output Low(IOL)
- 7.8mA
- Number of Elements
- 1
- Output Current
- 7.8mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 8ns@6V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Applications
- Output expansion
- LED matrix control
- 7-segment display control
- 8-bit data storage
