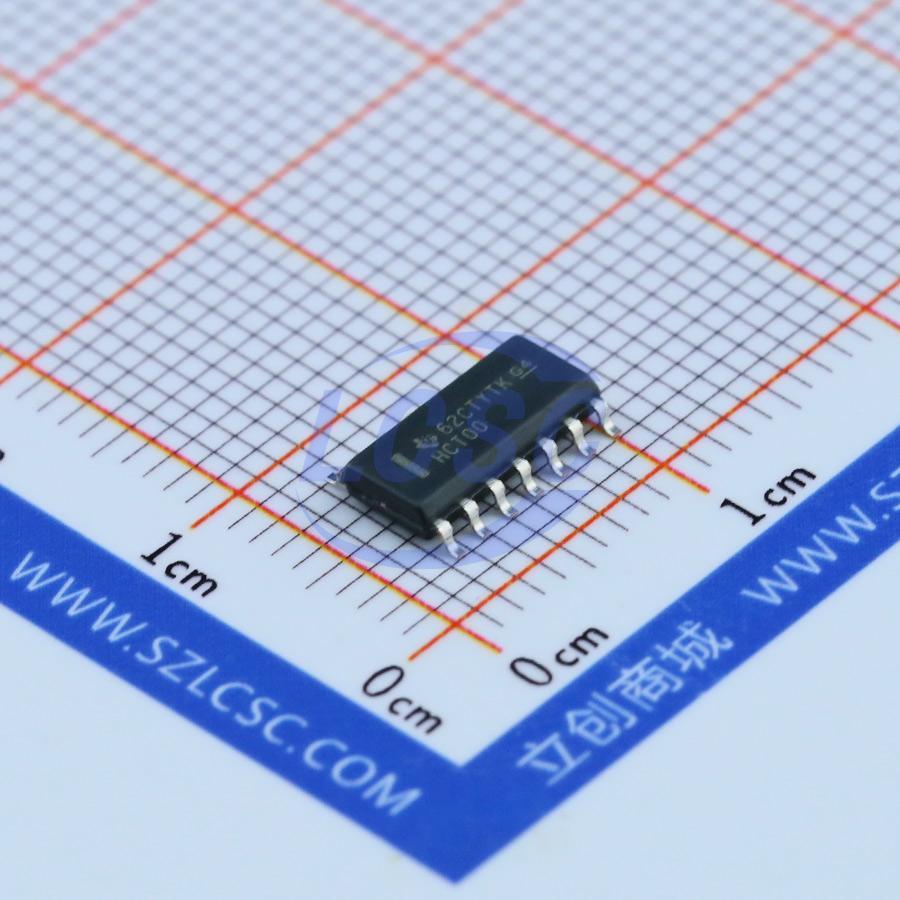

SN74HCT00DR
TTL-compatible CMOS 4.5V~5.5V 18ns@5.5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT00DR
- Store part #
- C6764
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,818 in stock
#C6764
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.80 | ₹52.80 |
| 10+ | ₹41.94 | ₹419.40 |
| 30+ | ₹37.16 | ₹1,114.80 |
| 100+ | ₹31.29 | ₹3,129.00 |
| 500+ | ₹28.68 | ₹14,340.00 |
| 1,000+ | ₹23.26 | ₹23,260.00 |
1 × ₹52.80
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCT00DR
₹52.80 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 18ns@5.5V,50pF
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.84V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
These devices contain four independent 2-input NAND gates. They perform the Boolean function Y = A·B or Y = A + B in positive logic.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20-μA Max ICC
- Typical tpd = 10 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL-Voltage Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCT00D#C354415TI · SOIC-14 | TI | SOIC-14 | 1 | ₹93.71 · 1 in stock | View |
 | CD74HCT00M96#C6552TI · SOIC-14 | TI | SOIC-14 | 6 | ₹122.73 · 6 in stock | View |
 | 74HCT00D,653#C282337Nexperia · SO-14 | Nexperia | SO-14 | 770 | ₹31.06 · 770 in stock | View |
 | 74HCT00D-Q100,118#C547188Nexperia · SO-14 | Nexperia | SO-14 | 300 | ₹68.64 · 300 in stock | View |
| 74HCT03D,653#C547200Nexperia · SO-14 | Nexperia | SO-14 | 30 | ₹40.67 · 30 in stock | View | |
