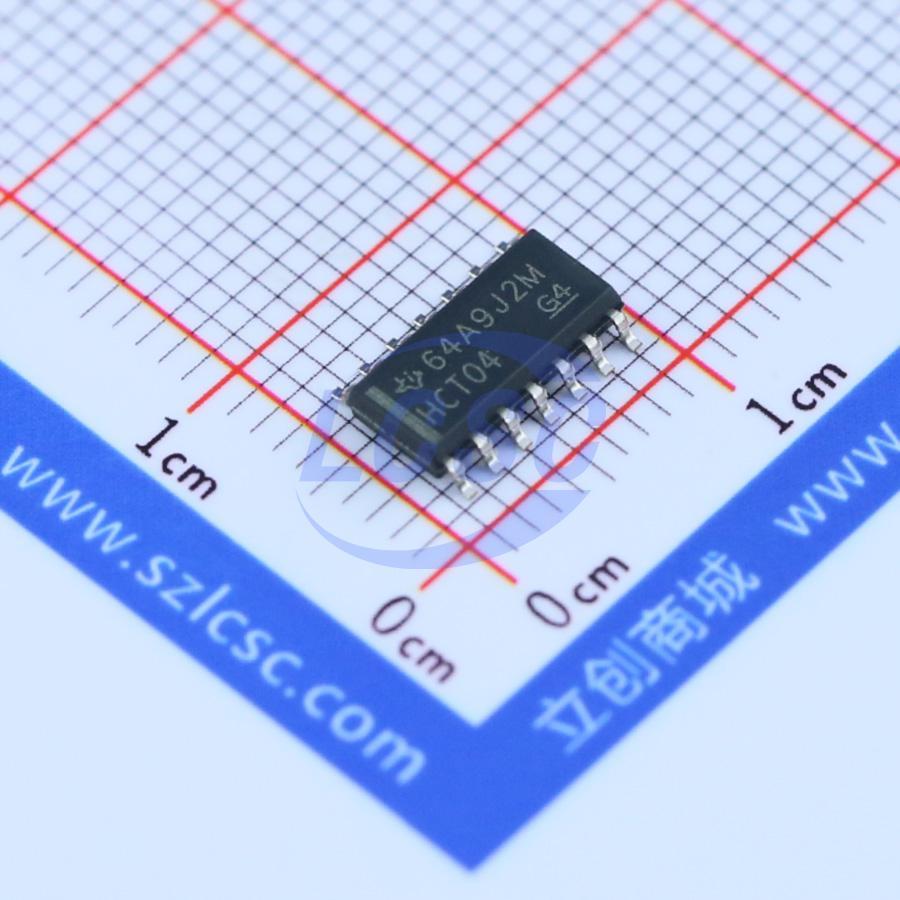

SN74HCT04DR
4.5V~5.5V 18ns@5.5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
HEX INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT04DR
- Store part #
- C6766
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,355 in stock
#C6766
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.13 | ₹205.65 |
| 50+ | ₹32.28 | ₹1,614.00 |
| 150+ | ₹27.97 | ₹4,195.50 |
| 500+ | ₹24.12 | ₹12,060.00 |
| 2,500+ | ₹23.06 | ₹57,650.00 |
| 5,000+ | ₹22.42 | ₹1,12,100.00 |
5 × ₹41.13
₹205.65
excl. GST
₹242.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCT04DR
₹205.65 for 5 + GST
Specifications
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 18ns@5.5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
These devices contain six independent inverters. They perform the Boolean function Y = A(overline) in positive logic.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 μA Max ICC
- Typical tpd = 13 ns
- ±4 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL-Voltage Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | U74HCT04G-UEA-R#C53152871UTC · SOP-14U | UTC | SOP-14U | 485 | ₹23.44 · 485 in stock | View |
