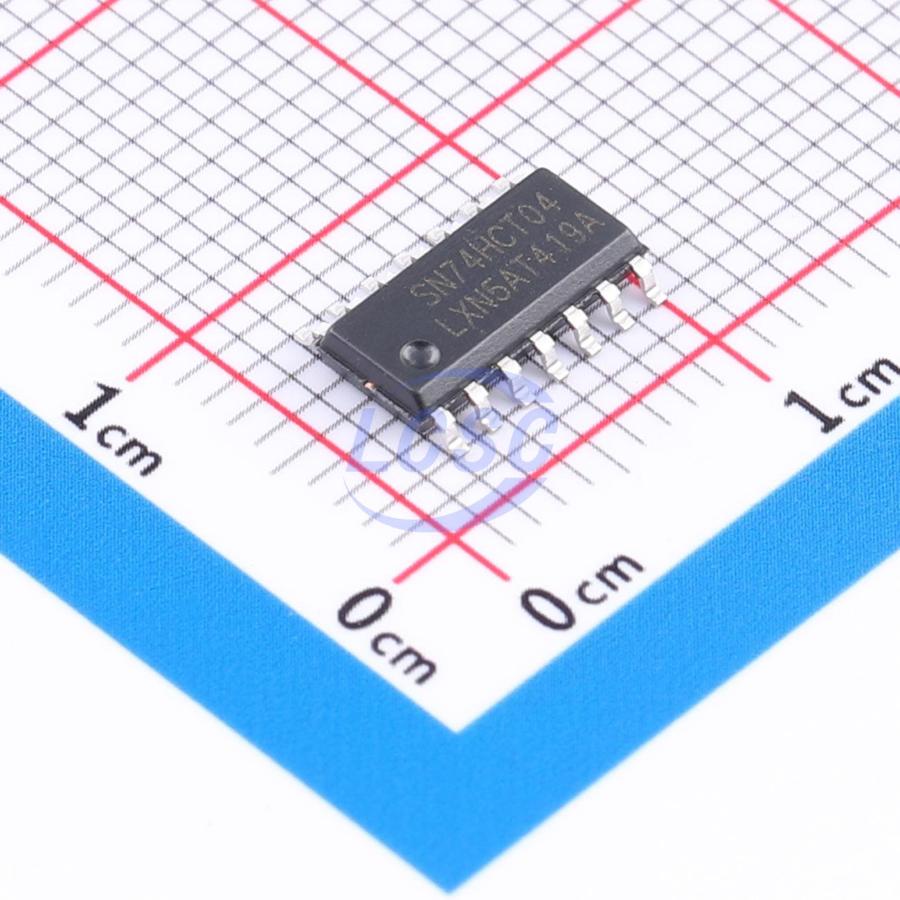

SN74HCT04DR-JSM
4.5V~5.5V 8ns@5V,15pF 40uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SN74HCT04DR-JSM
- Store part #
- C53436271
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,430 in stock
#C53436271
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.82 | ₹89.10 |
| 50+ | ₹14.17 | ₹708.50 |
| 150+ | ₹12.36 | ₹1,854.00 |
| 500+ | ₹10.98 | ₹5,490.00 |
| 2,500+ | ₹9.90 | ₹24,750.00 |
| 4,000+ | ₹9.35 | ₹37,400.00 |
5 × ₹17.82
₹89.10
excl. GST
₹105.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HCT04DR-JSM
₹89.10 for 5 + GST
Specifications
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 8ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.98V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.245 g
Overview
The 74HC/HCT04 is a hex inverter. Inputs include clamp diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels:
- 74HC04: CMOS level
- 74HCT04: TTL level
- Operating temperature range: -40°C ~ +125°C
- Package types: DIP14/SOP14/TSSOP14
