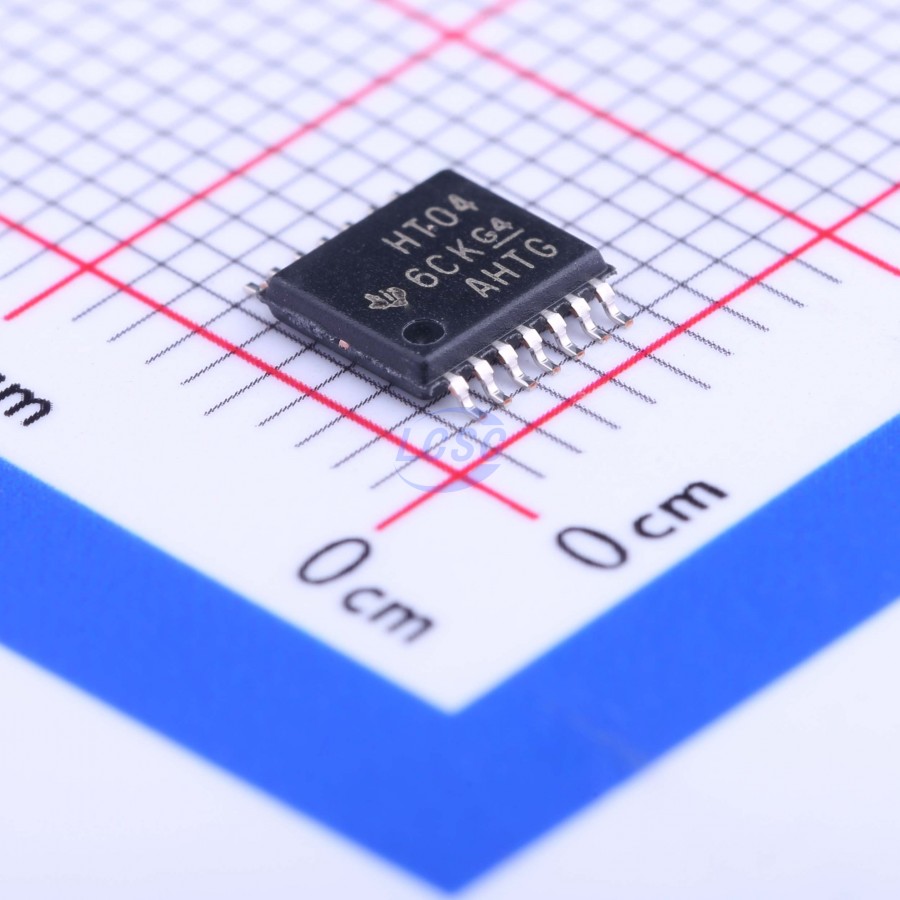

SN74HCT04PWR
4.5V~5.5V 18ns@5.5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
HEX INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT04PWR
- Store part #
- C131695
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,269 in stock
#C131695
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.63 | ₹44.63 |
| 10+ | ₹35.05 | ₹350.50 |
| 30+ | ₹30.90 | ₹927.00 |
| 100+ | ₹25.65 | ₹2,565.00 |
| 500+ | ₹23.31 | ₹11,655.00 |
| 1,000+ | ₹22.04 | ₹22,040.00 |
1 × ₹44.63
₹44.63
excl. GST
₹52.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT04PWR
₹44.63 for 1 + GST
Specifications
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 18ns@5.5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
These devices contain six independent inverters. They perform the Boolean function Y = A̅ in positive logic.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 - μA Max ICC
- Typical tpd = 13 ns
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL - Voltage Compatible
