GREENMICRODatasheet (PDF)

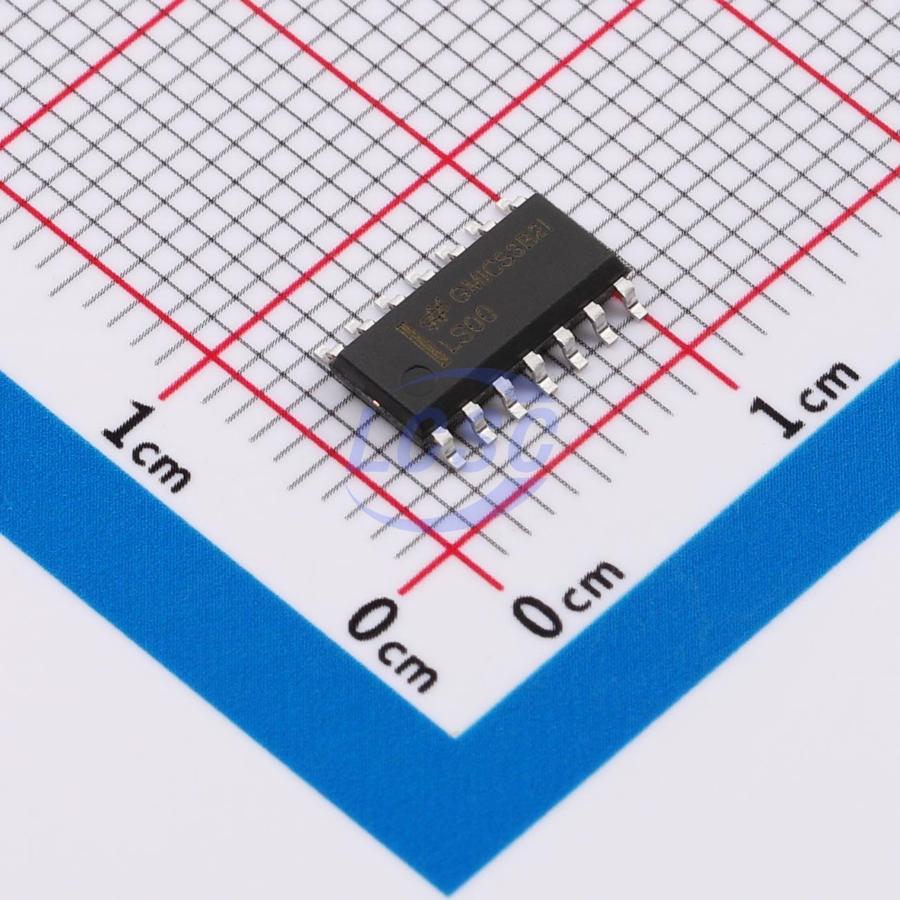

SN74LS00DS
2uA 2V~6V 7ns@6V SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SN74LS00DS
- Store part #
- C52091992
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,665 in stock
#C52091992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.36 | ₹101.80 |
| 50+ | ₹15.92 | ₹796.00 |
| 150+ | ₹14.02 | ₹2,103.00 |
| 500+ | ₹11.66 | ₹5,830.00 |
| 2,500+ | ₹10.60 | ₹26,500.00 |
| 4,000+ | ₹9.96 | ₹39,840.00 |
5 × ₹20.36
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74LS00DS
₹101.80 for 5 + GST
Specifications
- Logic Family
- 74LS Series
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 7ns@6V
- Output Logic Level - Low
- 260mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
74LS00 is a quad 2-input positive NAND gate providing the logic function Y = /(A·B) or Y = /A + /B.
Key features
- Operating voltage range: 2.0V~6.0V
- Low quiescent current: Icc max 2μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC00DS#C51927312GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 4,660 | ₹9.18 · 4,660 in stock | View |
