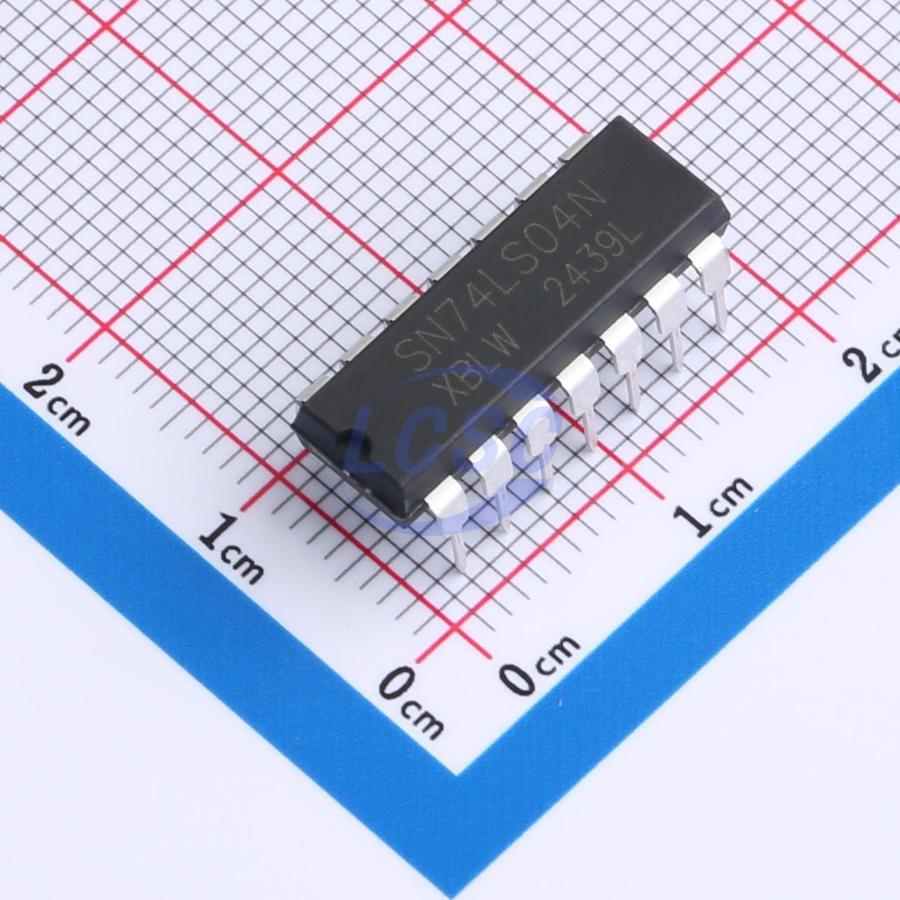

SN74LS04N(XBLW)
2V~6V 14ns@6V,50pF 2uA 6 DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Hex Inverter
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS04N(XBLW)
- Store part #
- C42395516
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C42395516
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.66 | ₹148.30 |
| 50+ | ₹23.64 | ₹1,182.00 |
| 150+ | ₹21.06 | ₹3,159.00 |
| 500+ | ₹17.83 | ₹8,915.00 |
| 2,500+ | ₹16.41 | ₹41,025.00 |
| 5,000+ | ₹15.55 | ₹77,750.00 |
5 × ₹29.66
₹148.30
excl. GST
₹174.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS04N(XBLW)
₹148.30 for 5 + GST
Specifications
- Logic Family
- 74LS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV;330mV
- Propagation Delay
- 14ns@6V,50pF
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.615 g
Overview
The SN74LS04 is a hex inverter. The inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
Applications
- Synchronize invterted clock inputs
- Debounce a switch
- Invert a digital signal
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -20°C to +85°C
- Packaging information: DIP-14/SOP-14/TSSOP-14
