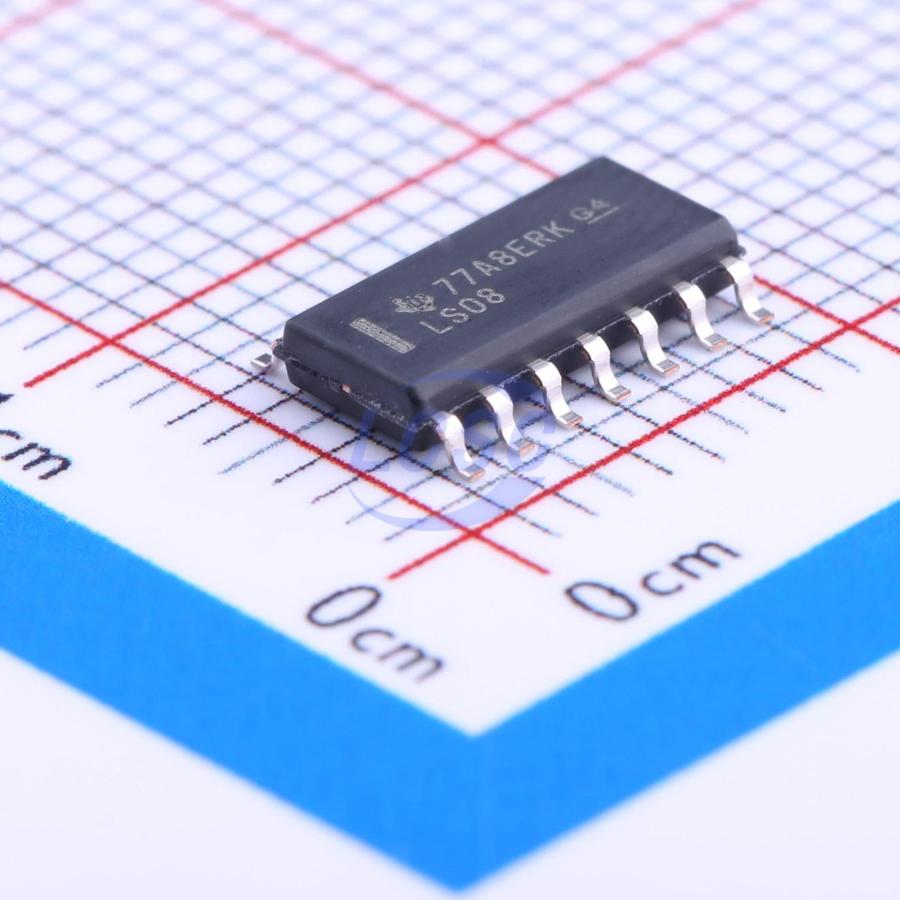

SN74LS08DR
AND Gate IC 4 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74LS08DR
- Store part #
- C6802
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,233 in stock
#C6802
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.57 | ₹100.57 |
| 10+ | ₹82.33 | ₹823.30 |
| 30+ | ₹72.99 | ₹2,189.70 |
| 100+ | ₹63.86 | ₹6,386.00 |
| 500+ | ₹50.62 | ₹25,310.00 |
| 1,000+ | ₹47.79 | ₹47,790.00 |
1 × ₹100.57
₹100.57
excl. GST
₹118.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS08DR
₹100.57 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- 0℃~+70℃
- Logic Family
- 74LS Series
- Output Logic Level - High
- 2.7V~3.4V
- Voltage - Supply
- 4.75V~5.25V
- Current - Output High(IOH)
- 400uA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 250mV~400mV;350mV~500mV
- Propagation Delay
- 20ns@5V,15pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
These devices contain four independent 2-input AND gates. The SN7408, SN74LS08, and SN74S08 are rated for operating temperatures from 0℃ to 70℃.
Key features
- Package options include plastic small-outline, ceramic chip carrier, flat pack, and plastic and ceramic DIP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS08D#C2869240TI · SOIC-14 | TI | SOIC-14 | 99 | ₹109.21 · 99 in stock | View |
 | XL74LS08#C521140XINLUDA · SOP-14 | XINLUDA | SOP-14 | 1,585 | ₹22.85 · 1,585 in stock | View |
 | SN74LS08DS#C52092045GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 2,100 | ₹13.55 · 2,100 in stock | View |
 | SN74LS08DTR(XBLW)#C54525284XBLW · SOP-14 | XBLW | SOP-14 | 425 | ₹16.10 · 425 in stock | View |
 | SN74ALS08DR#C7493TI · SOIC-14 | TI | SOIC-14 | 986 | ₹94.54 · 986 in stock | View |
