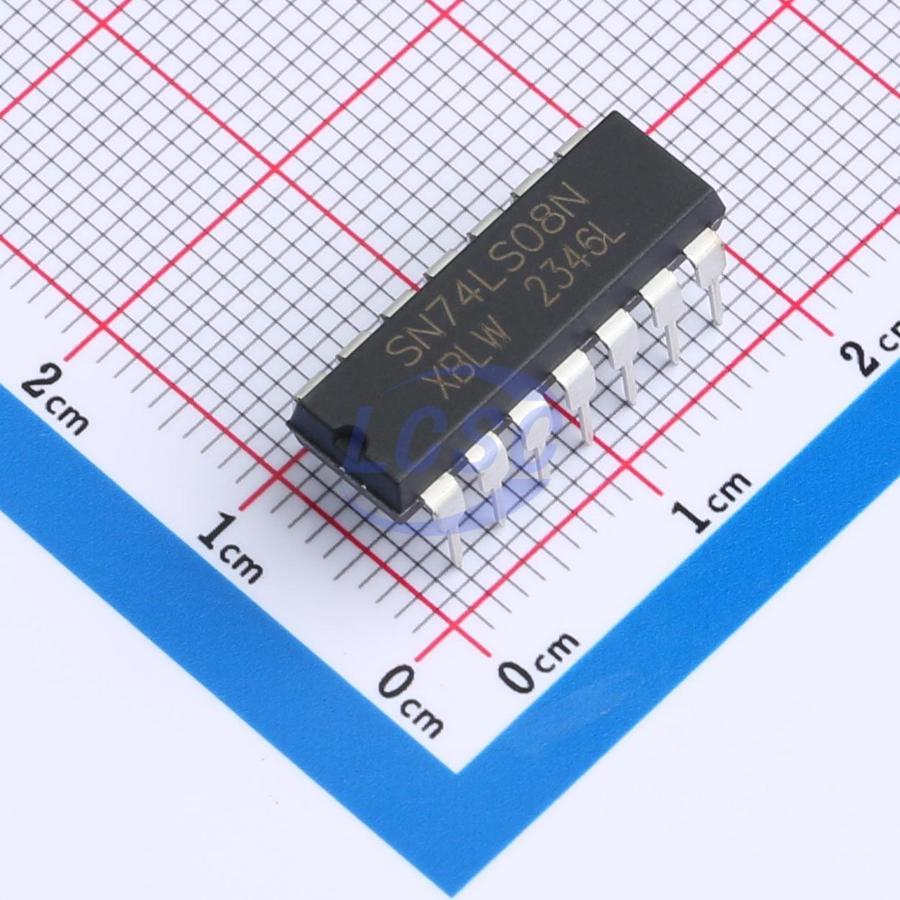

SN74LS08N(XBLW)
2V~6V 15ns@6V 2uA DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input And Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS08N(XBLW)
- Store part #
- C42395507
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C42395507
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.90 | ₹114.50 |
| 50+ | ₹17.98 | ₹899.00 |
| 150+ | ₹15.88 | ₹2,382.00 |
| 500+ | ₹13.24 | ₹6,620.00 |
| 2,500+ | ₹12.08 | ₹30,200.00 |
| 5,000+ | ₹11.38 | ₹56,900.00 |
5 × ₹22.90
₹114.50
excl. GST
₹135.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS08N(XBLW)
₹114.50 for 5 + GST
Specifications
- Logic Family
- 74LS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 15ns@6V
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.669 g
Overview
The SN74LS08 is a quad 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC
Applications
- Combining power good signals
- Enable digital signals
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -20 ℃ to +85 ℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC08N(XBLW)#C18723499XBLW · DIP-14 | XBLW | DIP-14 | 1,975 | ₹18.34 · 1,975 in stock | View |
