XBLWDatasheet (PDF)

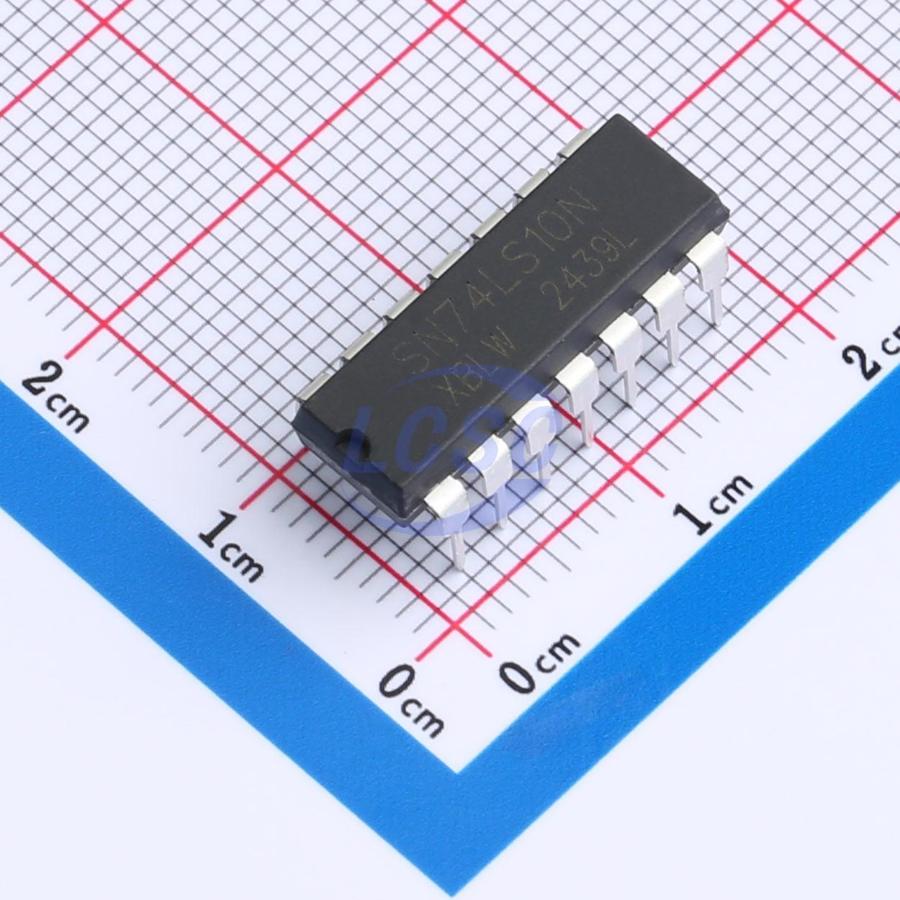

SN74LS10N(XBLW)
2uA 2V~6V 9ns@6V,50pF DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Triple 3-input Nand Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS10N(XBLW)
- Store part #
- C42395508
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,145 in stock
#C42395508
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.52 | ₹172.60 |
| 50+ | ₹26.84 | ₹1,342.00 |
| 150+ | ₹23.55 | ₹3,532.50 |
| 500+ | ₹19.45 | ₹9,725.00 |
| 2,500+ | ₹17.62 | ₹44,050.00 |
| 5,000+ | ₹16.52 | ₹82,600.00 |
5 × ₹34.52
₹172.60
excl. GST
₹203.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS10N(XBLW)
₹172.60 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LS
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 3;3
- Propagation Delay
- 9ns@6V,50pF
- Output Logic Level - Low
- 260mV;330mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.599 g
Overview
The SN74LS10is a triple 3-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
Applications
- Alarm / tamper detect circuit
- S-R latch
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -20°C to +85°C
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC10N(XBLW)#C18723500XBLW · DIP-14 | XBLW | DIP-14 | 795 | ₹26.01 · 795 in stock | View |
