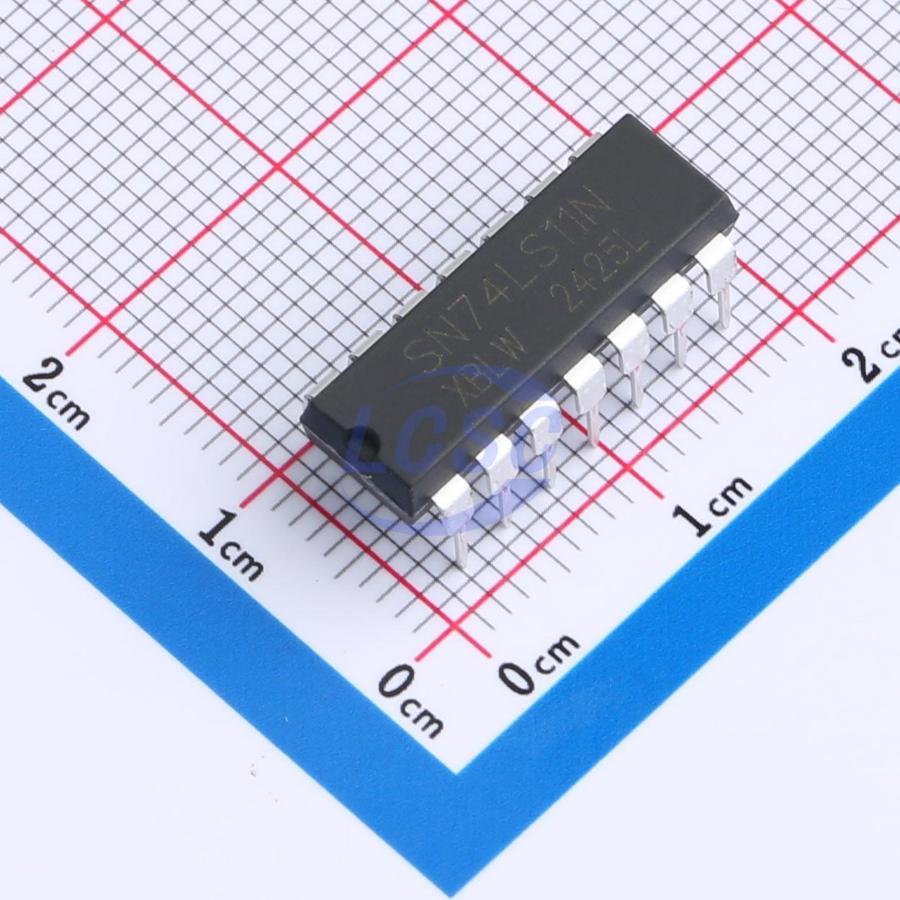

SN74LS11N(XBLW)
2uA 2V~6V 9ns@5V,15pF DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Triple 3-input And Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS11N(XBLW)
- Store part #
- C42395509
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C42395509
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.32 | ₹186.60 |
| 50+ | ₹29.66 | ₹1,483.00 |
| 150+ | ₹26.38 | ₹3,957.00 |
| 500+ | ₹22.28 | ₹11,140.00 |
| 2,500+ | ₹20.45 | ₹51,125.00 |
| 5,000+ | ₹19.36 | ₹96,800.00 |
5 × ₹37.32
₹186.60
excl. GST
₹220.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS11N(XBLW)
₹186.60 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LS
- Input Logic Level - Low
- 1.8V
- Input Logic Level - High
- 4.2V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 5.34V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 3;3
- Propagation Delay
- 9ns@5V,15pF
- Output Logic Level - Low
- 330mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.617 g
Overview
The SN74LS11is a triple 3-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Combining power good signals
- Enable digital signals
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -20 ℃ to 85 ℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC11N(XBLW)#C18723501XBLW · DIP-14 | XBLW | DIP-14 | 510 | ₹23.19 · 510 in stock | View |
