TDSEMICDatasheet (PDF)

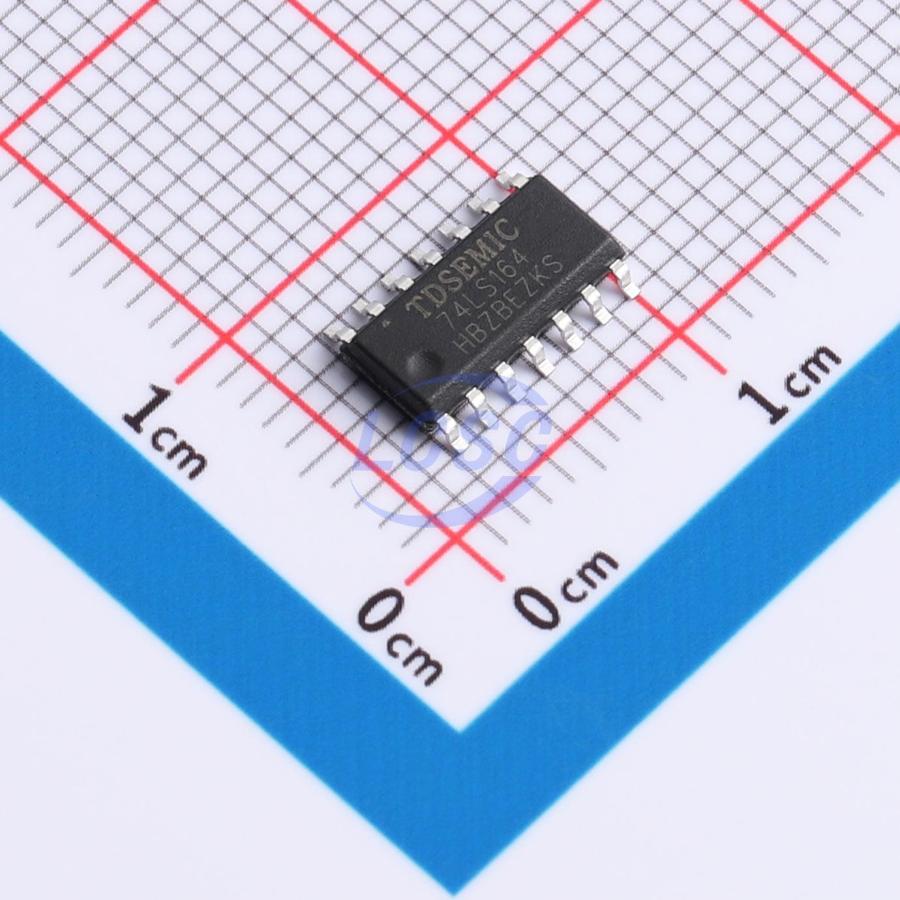

SN74LS164DR-TD
2V~6V 1 25mA 12ns@6V,50pF Serial-to-Parallel SOP-14 Shift Registers
SOP-14RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN74LS164DR-TD
- Store part #
- C52437587
- Package / case
- SOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,835 in stock
#C52437587
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.76 | ₹163.80 |
| 50+ | ₹25.82 | ₹1,291.00 |
| 150+ | ₹22.85 | ₹3,427.50 |
| 500+ | ₹19.14 | ₹9,570.00 |
| 2,500+ | ₹17.50 | ₹43,750.00 |
| 5,000+ | ₹16.51 | ₹82,550.00 |
5 × ₹32.76
₹163.80
excl. GST
₹193.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS164DR-TD
₹163.80 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Series
- 74LS
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 12ns@6V,50pF
- Features
- Asynchronous clear function
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.273 g
Overview
The 74LS164 is an 8-bit edge-triggered shift register with serial input and parallel output. A low-to-high transition on the clock pin shifts data one bit to the right, where the data represents the logical AND of data input A and data input B. A low level on the master reset pin asynchronously clears the register and forces all outputs low.
Key features
- Wide operating voltage range: 2 ~ 6 V
- Asynchronous reset input
- Low input current: 0.1 μA
- Latch-up performance ≤ 250 mA
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 2023) exceeds 1500 V; CDM (ANSI/ESDA/JEDEC JS-002 2022) exceeds 1000 V
- Package options: DIP-14, SOP-14, and TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC164D-TD#C52437583TDSEMIC · SOP-14 | TDSEMIC | SOP-14 | 880 | ₹9.14 · 880 in stock | View |
