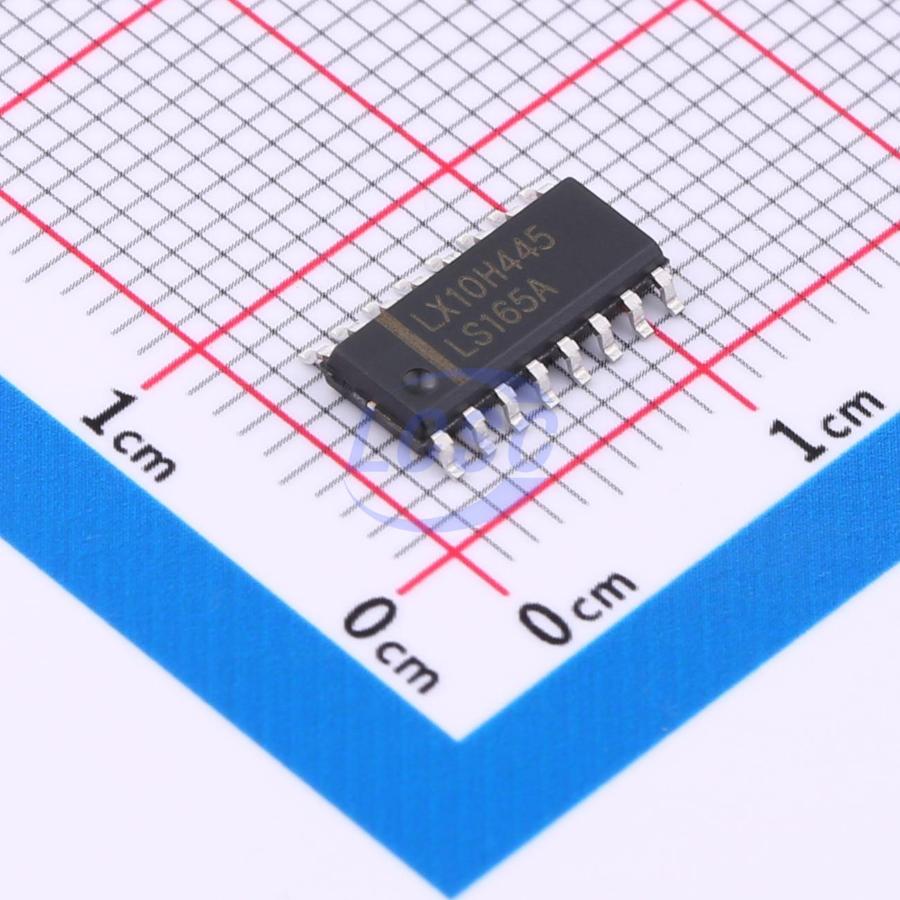

SN74LS165ADR(LX)
2V~6V 28ns@6V,50pF Parallel-to-Serial SOP-16 Shift Registers
SOP-16RoHSActive
8-bit parallel-in serial-out shift register
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS165ADR(LX)
- Store part #
- C42403065
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,375 in stock
#C42403065
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.04 | ₹135.20 |
| 50+ | ₹23.62 | ₹1,181.00 |
| 150+ | ₹22.15 | ₹3,322.50 |
| 500+ | ₹20.31 | ₹10,155.00 |
| 2,500+ | ₹19.50 | ₹48,750.00 |
| 5,000+ | ₹19.01 | ₹95,050.00 |
5 × ₹27.04
₹135.20
excl. GST
₹159.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS165ADR(LX)
₹135.20 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Series
- 74LS
- Features
- Asynchronous parallel load function
- Propagation Delay
- 28ns@6V,50pF
- Function
- Parallel-to-Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The SN74LS165 is an 8-bit serial or parallel-in/serial-out shift register. The circuit features a serial data input (DS), eight parallel data inputs (D0–D7), and two complementary serial outputs (Q7 and Q7). When the parallel load input (PL) is low, data on D0–D7 is asynchronously loaded into the shift register. When PL is high, data enters the register serially at DS. When the clock enable input (CE) is low, data shifts on the rising edge of the CP input. A high level on CE disables the CP input.
Key features
- Asynchronous 8-bit parallel load
- Synchronous serial input
- ESD-HBM: 3000V
- ESD-CDM: 1000V
- Operating temperature range: -40℃~+125℃
- Package: DIP16/SOP16/TSSOP16
